Textron Jacobsen AR-5 Technical/Repair Manual

ELECTRICAL
4181383 First Edition 4-73
4
Removal and Installation
See Figures 4-62 and 4-63.
NOTE
Restricted hydraulic filter warning/engine temperature
warning module shown.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Disconnect the negative (–) battery cable at the
battery.
3. Remove the instrument panel. (See “Instrument
Panel” on page 4-71.)

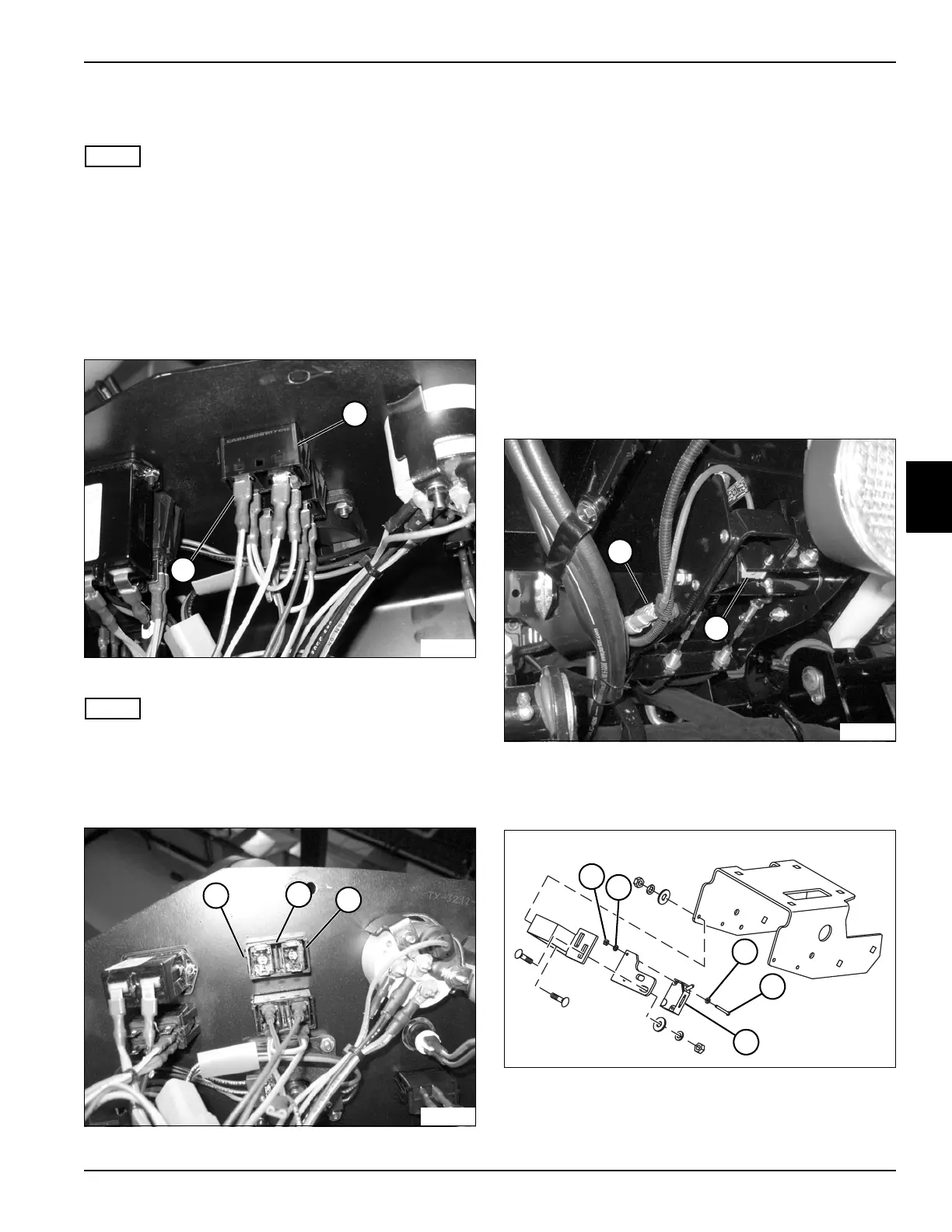

Figure 4-62
NOTE
Label all wiring connectors and note their location before
removing to ensure correct installation.
4. Disconnect wiring connectors (1) from the indicator
lamp module (2).
Figure 4-63
5. Press in on tabs (3) on each side of the indicator
lamp module (4), and push module up through the
instrument panel.
Installation Note
Install indicator lamp modules by reversing the order of
removal.
Park Brake Proximity Switch
Removal and Installation
See Figures 4-64 and 4-65.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-5.)
2. Disconnect the negative (–) battery cable at the
battery.
Figure 4-64
3. Disconnect the wiring connector (1) for the park
brake proximity switch (2).
Figure 4-65
4. Remove two nuts (3), four washers (4), and two
screws (5).
1
2
TN1627
3
3
4
TN1628
TN1468
1
2
TN1482
3
6
4
5
4
