Textron Jacobsen AR-5 Technical/Repair Manual

5-28 4181383 First Edition
HYDROSTATIC POWER TRAIN
5

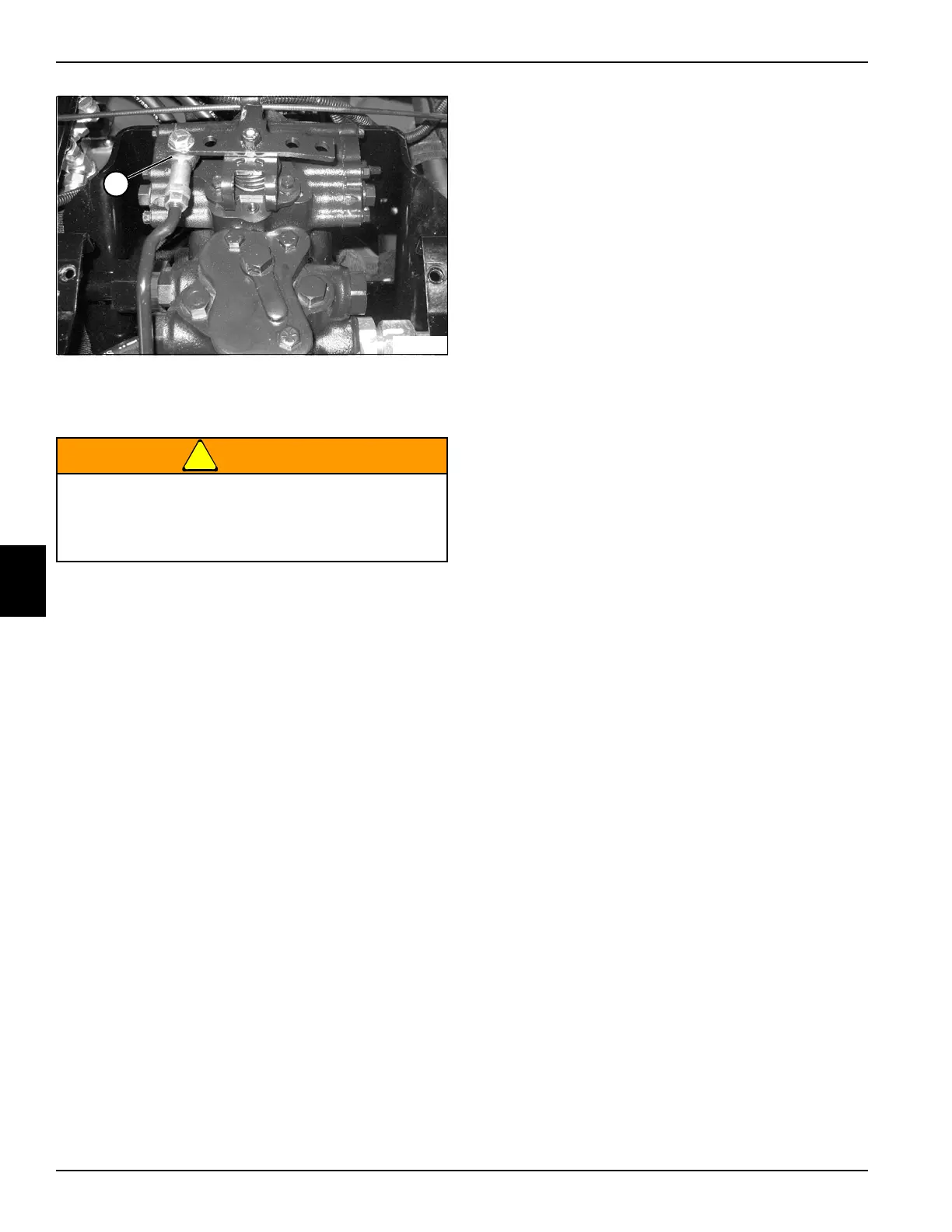

Figure 5-28
8. Disconnect control rod (12).
9. Disconnect drive shaft (3).
!
WARNING
10. Attach a suitable lifting device to the traction pump
(11).
11. Remove nuts (4), lock washers (5), and screws (6).
12. Remove traction pump (11).
Installation Notes
• Install the hydrostatic pump by reversing the order of
removal.
• Ensure new O-rings are in place before installing
hoses on fittings.
• Pressure filter traction system. (See “Portable In-Line
Filter” on page 5-2.)
• Fill the hydraulic tank. (Refer to “Safety, Operation,
and Maintenance Manual” for the correct oil
specifications.)
• Start engine. Check for leaks and repair as
necessary.
The traction pump weighs approximately 131 lb
(59 kg). Prevent personal injury. Use a properly
rated lifting device. Always be sure the load is
balanced before lifting.
12
TN1398
