Textron Jacobsen AR-5 Technical/Repair Manual

HYDROSTATIC POWER TRAIN
4181383 First Edition 5-29
5
Disassembly, Inspection, and Assembly
See Figures 5-29 and 5-30.

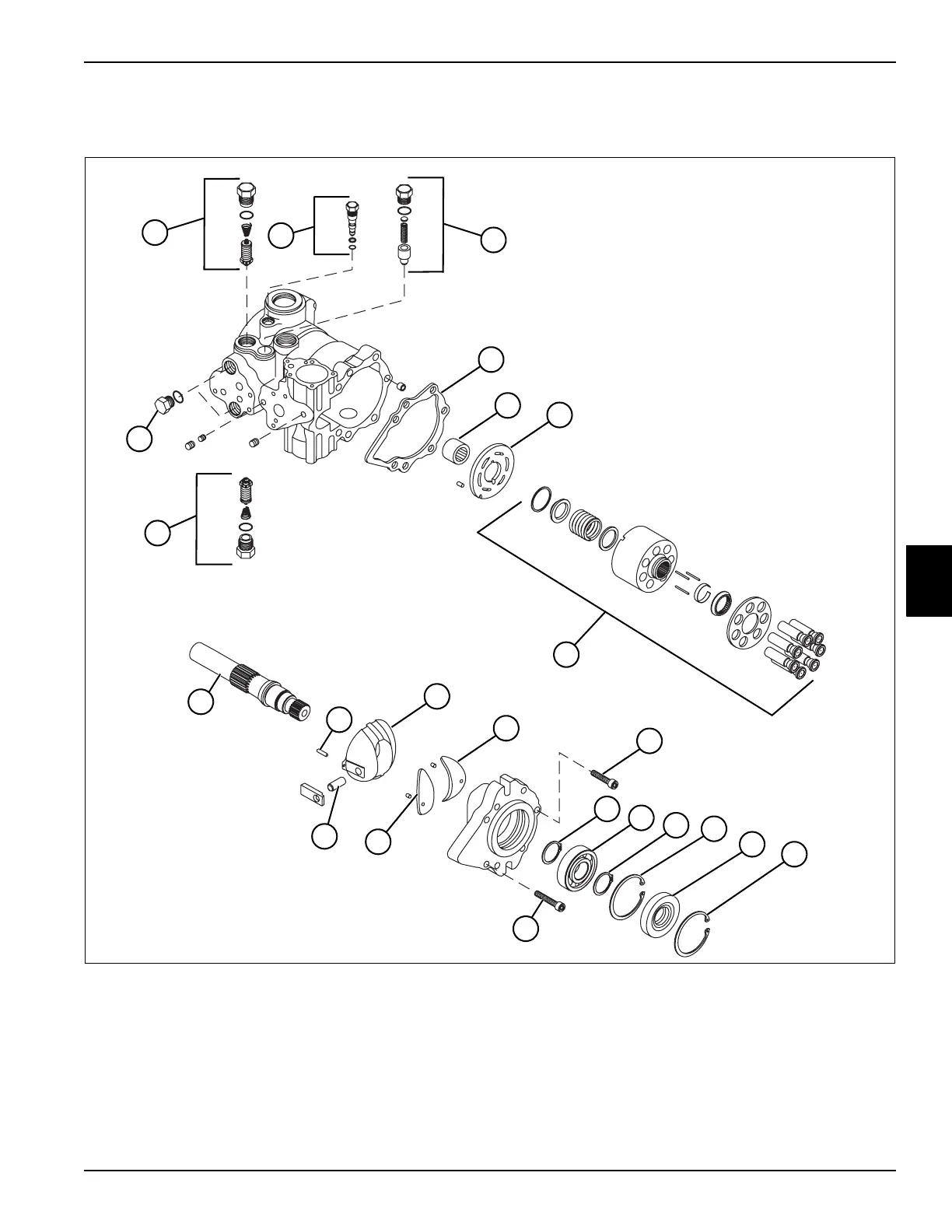

Figure 5-29
1 Relief Valve 9 Cylinder Block Kit 17 Ring
2 Bypass Valve 10 Pump Shaft 18 Roller Bearing
3 Charge Pressure Relief Valve 11 Pin 19 Ring
4 Plug 12 Variable Swash Plate 20 Retaining Ring
5 Front Cover Gasket 13 Journal Bearing 21 Shaft Seal
6 Needle Bearing 14 Screw 22 Ring
7 Valve Plate 15 Pin 23 Screw
8 Relief Valve 16 Journal Bearing
TN1394
3
2
1
4
9
8
10
11
15
16
17
18
19
20
21
22
14
13
5
6
7
12
23
