Textron Jacobsen AR-5 Technical/Repair Manual

5-30 4181383 First Edition
HYDROSTATIC POWER TRAIN
5

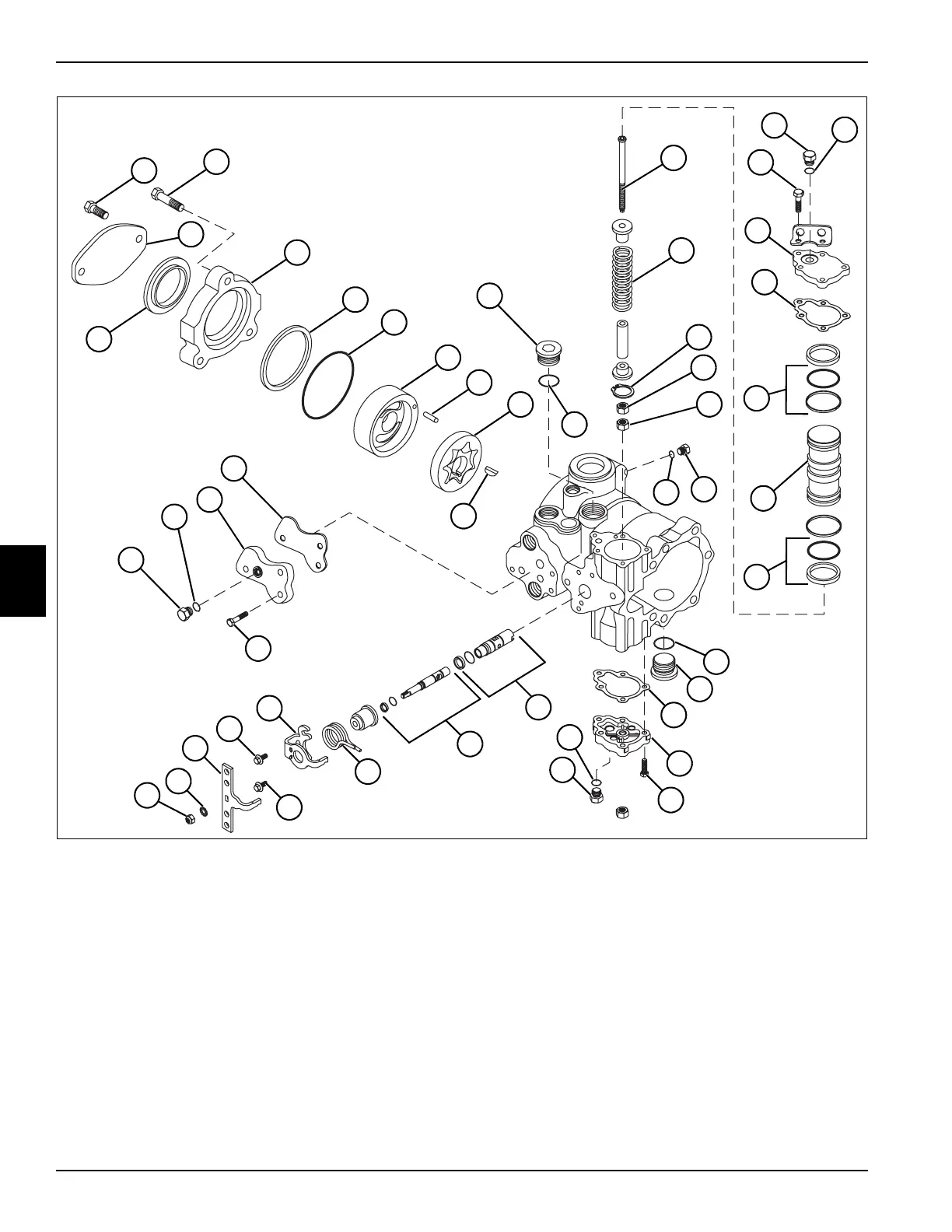

Figure 5-30
1 Screw 14 O-Ring 27 Piston 40 Nut
2 Screw 15 Plug 28 Piston Ring Kit 41 Washer
3 Flange Cover 16 Nut 29 O-Ring 42 Control Handle
4 Flange 17 Nut 30 Plug 43 Screw
5 Pad Adapter 18 Snap Ring 31 Servo Cover Gasket 44 Neutral Bracket
6 Temper Load Ring 19 Spring 32 Servo Cover 45 Screw
7 O-Ring 20 Screw 33 Screw (5) 46 Plug
8 Plug 21 Plug 34 Plug 47 O-Ring
9 Gerotor Cover 22 O-Ring 35 O-Ring 48 Suction Filter Adaptor
10 Pin 23 Screw 36 Sleeve Assembly 49 Suction Filter Adaptor Seal
11 Gerotor 24 Servo Cover 37 Spool Assembly
12 Drive Key 25 Servo Cover Gasket 38 Neutral Return Spring
13 O-Ring 26 Piston Ring Kit 39 Screw
TN1393
37
46
49
11
7
6
8
15
28
21
23
26
25
30
31
33
34
38
45
2
1
32
12
10
9
5
4
3
13
14
27
24
16
17
18
19
20
29
44
43
39
42
41
40
22
35
36
47
48
