HYDROSTATIC POWER TRAIN
4181383 First Edition 5-11
5

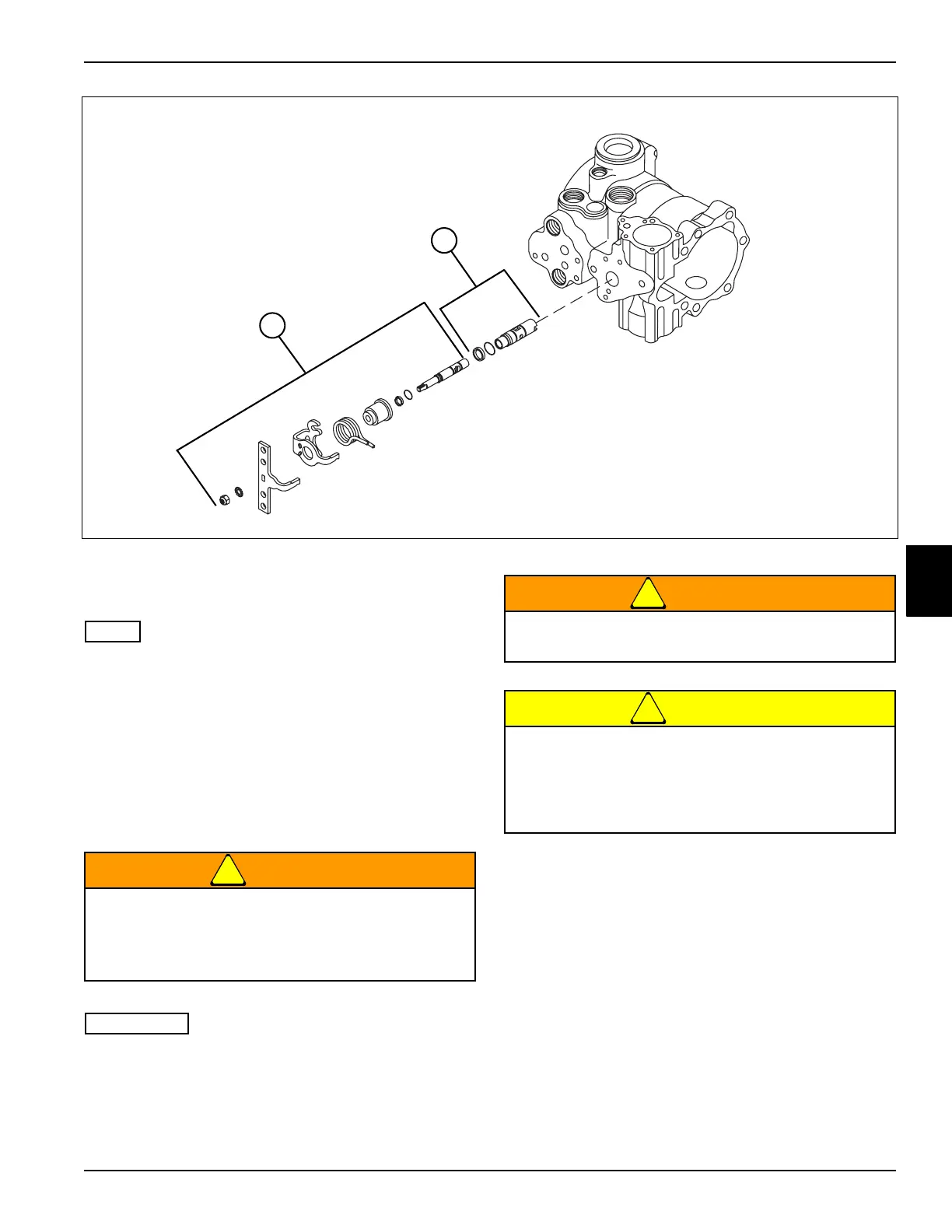

Figure 5-6
20. Remove control spool (6) as an assembly. Clean and
inspect.
NOTE
Control sleeve (7) may be difficult to remove. If needed,
use a blind race puller with a slide hammer to remove.
21. Remove control sleeve (7) as an assembly. Clean
and inspect.
22. If needed, repair or replace control sleeve (7) and
control spool (6).
23. Install control sleeve (7) as an assembly.
24. Install control spool (6) as an assembly.
25. Install screws (2 and 3) but do not tighten.
!
WARNING
IMPORTANT
It is important to lift and support the machine or the
machine will move.
26. Lift the machine so that front and rear wheels are off
the ground and support with stands.
!
WARNING
!
CAUTION
27. Start the engine, release brake, and observe the
wheels.
28. Adjust bracket (5) until wheels do not turn.
29. Tighten screws (2 and 3) making sure wheels are not
turning.
30. Stop the engine and apply brake.
31. Connect traction pedal linkage (1).
32. Adjust traction pedal neutral switch. (See “Adjust
Traction Pedal Neutral Switch” on page 5-12.)
33. Start the engine and release brake.
TN1702
6
7
Prevent personal injury. Use properly rated lifting
devices. Always be sure load is balanced before
lifting.
Support the machine properly using jack stands.
Never operate the engine without proper
ventilation; exhaust fumes can be fatal if inhaled.
Engine component will become hot during
operation. Use caution when working near engine
components while performing service. Failure to
follow safety recommendations may result in
injury.
