6-52 4181383 First Edition
HYDRAULICS
6

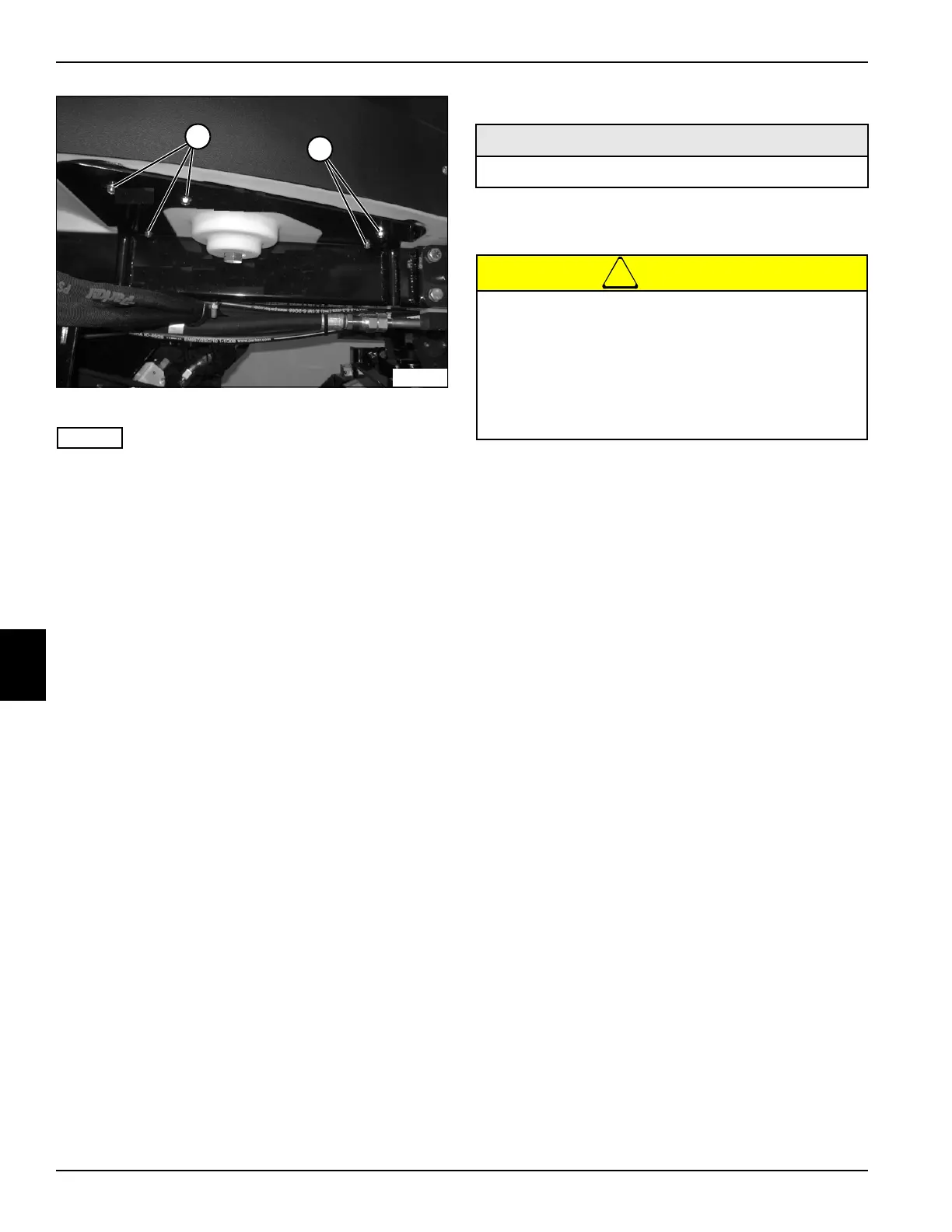

Figure 6-51
NOTES
• Label all hydraulic hoses and tubes before
disconnecting to aid in installation.
• Close all openings with caps or plugs to prevent
contamination.
7. Disconnect hose (7) from fitting (6).
8. Disconnect hoses (9 and 10) from hydraulic oil tank.
9. Support the hydraulic oil tank.
10. Remove two screws (8).
11. Remove five screws (11) from the bottom of the
hydraulic oil tank.
12. Remove the hydraulic oil tank.
Installation Notes
• Install hydraulic oil tank by reversing the order of
removal.
!
CAUTION
• Apply anti-seize compound to screws (11) and
tighten to correct torque. Do not over torque these
screws or tank may crack and cause leak.
• Ensure new O-rings are in place before installing
hoses on fittings.
• Replace hydraulic oil filter.
• Refill hydraulic oil tank. (Refer to “Safety, Operation,
and Maintenance Manual” for oil specifications.)
• Start engine. Check hydraulic oil tank for leaks and
repair as necessary.
• Check hydraulic oil level and add if necessary.
TN1477
11
11
Required Materials
Anti-Seize Compound
• When connecting fittings to the tank, be sure
to hold the tank fitting with the proper
wrench. If the proper wrench is not used, the
fitting in the tank might break loose from the
plastic and cause it to leak.
• Do not over torque screws to tank or tank
may crack and cause leak.
To Next Page
