25. Install the valve plate (11) as shown (closed cylinder
up) in the valve ring (9), aligning the spring slots with
the springs. Install the seal ring (12).

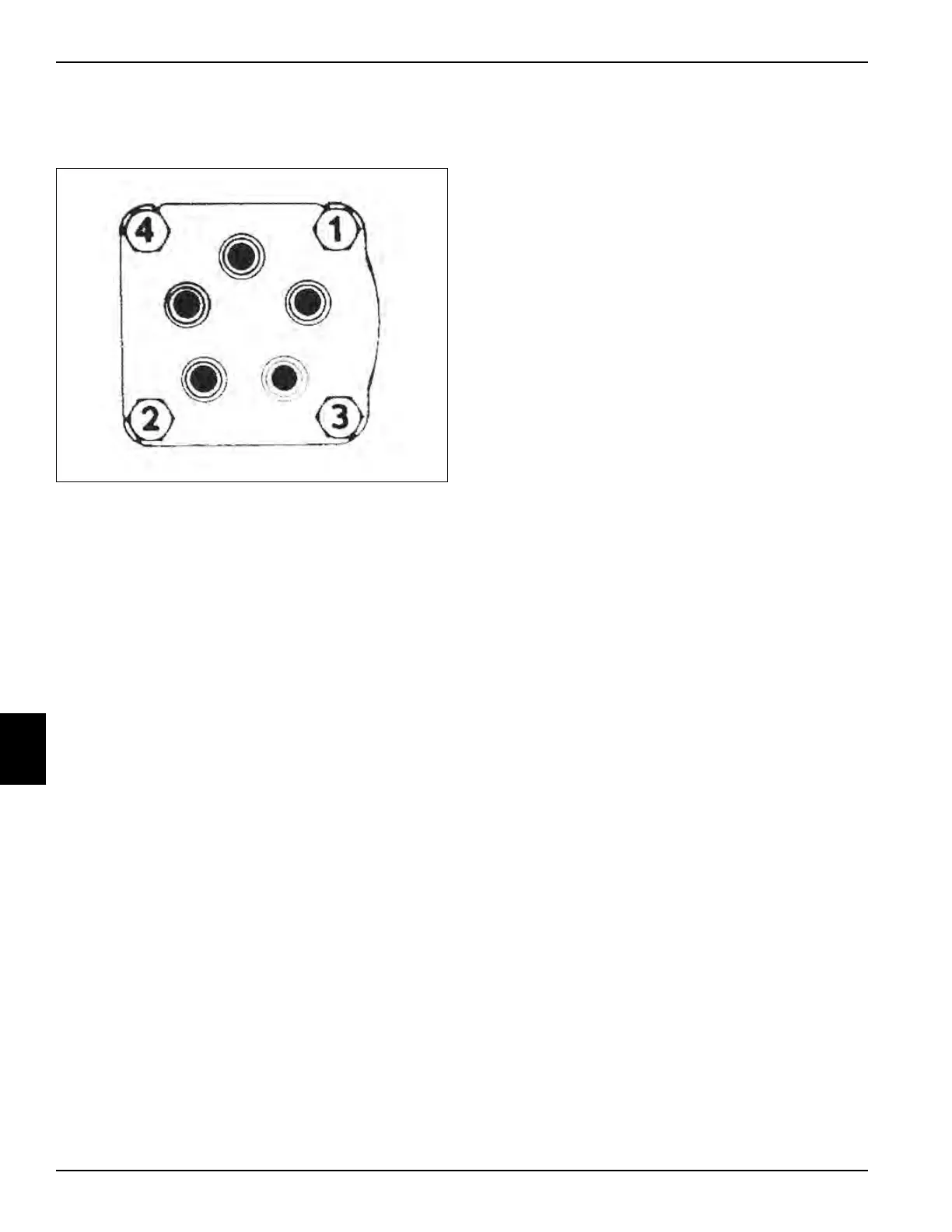

Figure 7-18
26. Place the three springs (7) in the port manifold (6).
27. Carefully place the port manifold (6), springs down,
onto the valve ring (9).
28. Install the O-rings (4) and seal ring (5) on the port
cover (2).
29. Install the relief valve (3) in the port cover (2).
30. Install the port manifold (6).
31. Install the nuts (1). Tighten the lock nuts gradually in
sequence to 20—24 lb-ft (27—33 N·m) torque.
TN1440
