Textron Jacobsen AR-5 Technical/Repair Manual

ENGINE
4181383 First Edition 3-11
3

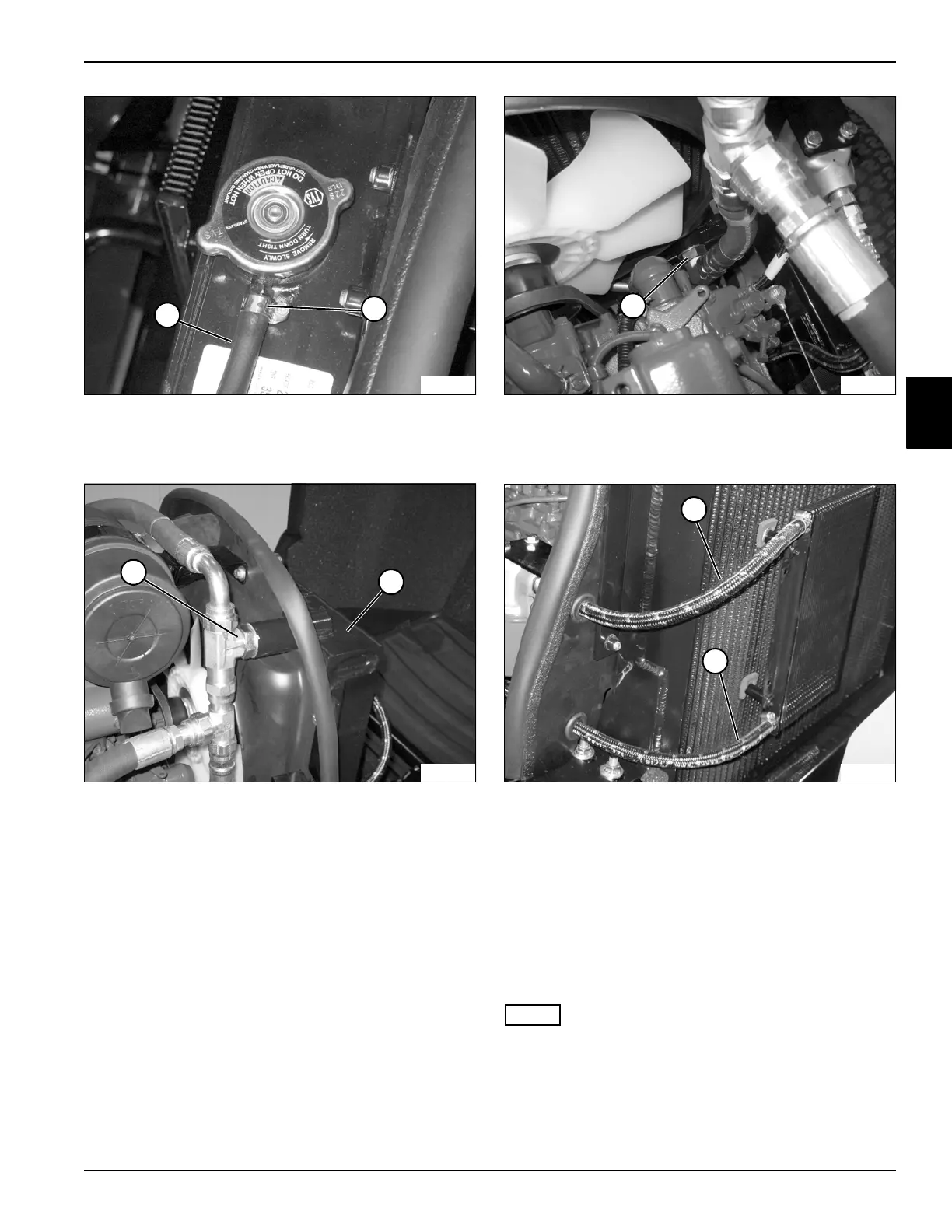

Figure 3-16
10. Loosen hose clamp (9) and disconnect overflow hose
(8) from the radiator/hydraulic cooler.
Figure 3-17
11. Disconnect hydraulic fitting (10) from the top of the
radiator/hydraulic cooler (1).
Figure 3-18
12. Disconnect hydraulic hose (11) from the bottom of
the radiator/hydraulic cooler.
Figure 3-19
13. Tag and disconnect the hydraulic hoses (12 and 13)
from the engine oil cooler. Immediately plug the
hoses and engine oil cooler to prevent contamination
of the engine oil system.
14. Cut the four ties securing the engine oil cooler to the
radiator/hydraulic cooler. Remove the engine oil
cooler and spacers.
15. Remove two screws on each side and top of the
shroud. Push the shroud slightly toward the engine.
NOTE
There are sheet metal splash guards mounted at the
bottom on each side of the radiator. The guards are
secured to the lower radiator mounts.
9
8
TN1509
10
1
TN1508
11
TN1510
TN1481
12
13
