Supervision information on delay compensation and
synchronization
, if any.
This information is available:
For a TS switch with activated delay compensation
synchronization: graph and switch details.
For a T2-MI gateway switch: switch details only.
For a T2-MI network switch: graph and switch details.

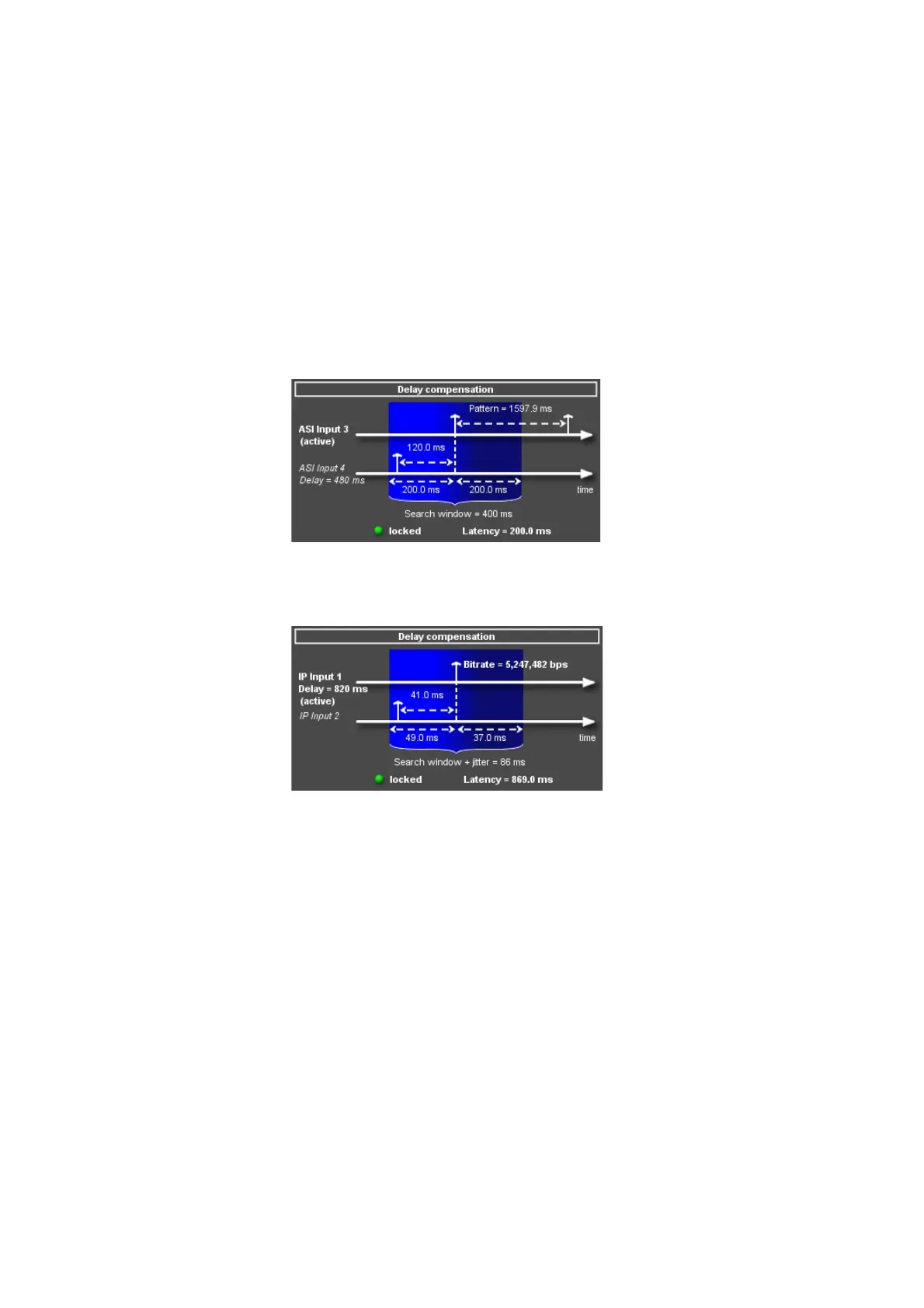

Figure 3-94. Delay Compensation Timing Display (on an ASI TS switch)
Figure 3-95. Delay Compensation Timing Display (on an IP TS switch)
The time lines represent the two streams after application of time
delay (if configured). For example in the first graph above, input 4
stream is in advance of 120 ms after a time delay compensation of
400 ms.
This area gives the following indications:
On the graph, if available:
-
The name and status (active) of the inputs.
-
If an input is delayed, the delay value, expressed in
milliseconds.
-
The remaining delay detected between the two streams,
expressed in milliseconds and the relative temporal
position of the streams.
-
In ASI delay compensation, the pattern period on the active
stream, expressed in milliseconds.
