THOMSON Amethyst III - Network Redundancy Application

Chapter 1 ’Overview’ — System Applications
Amethyst III DTV Smart Switch 23
User Manual
Network Redundancy Application
The stream is duplicated for redundancy purposes and is conveyed by
two paths, one being more direct than the other one.

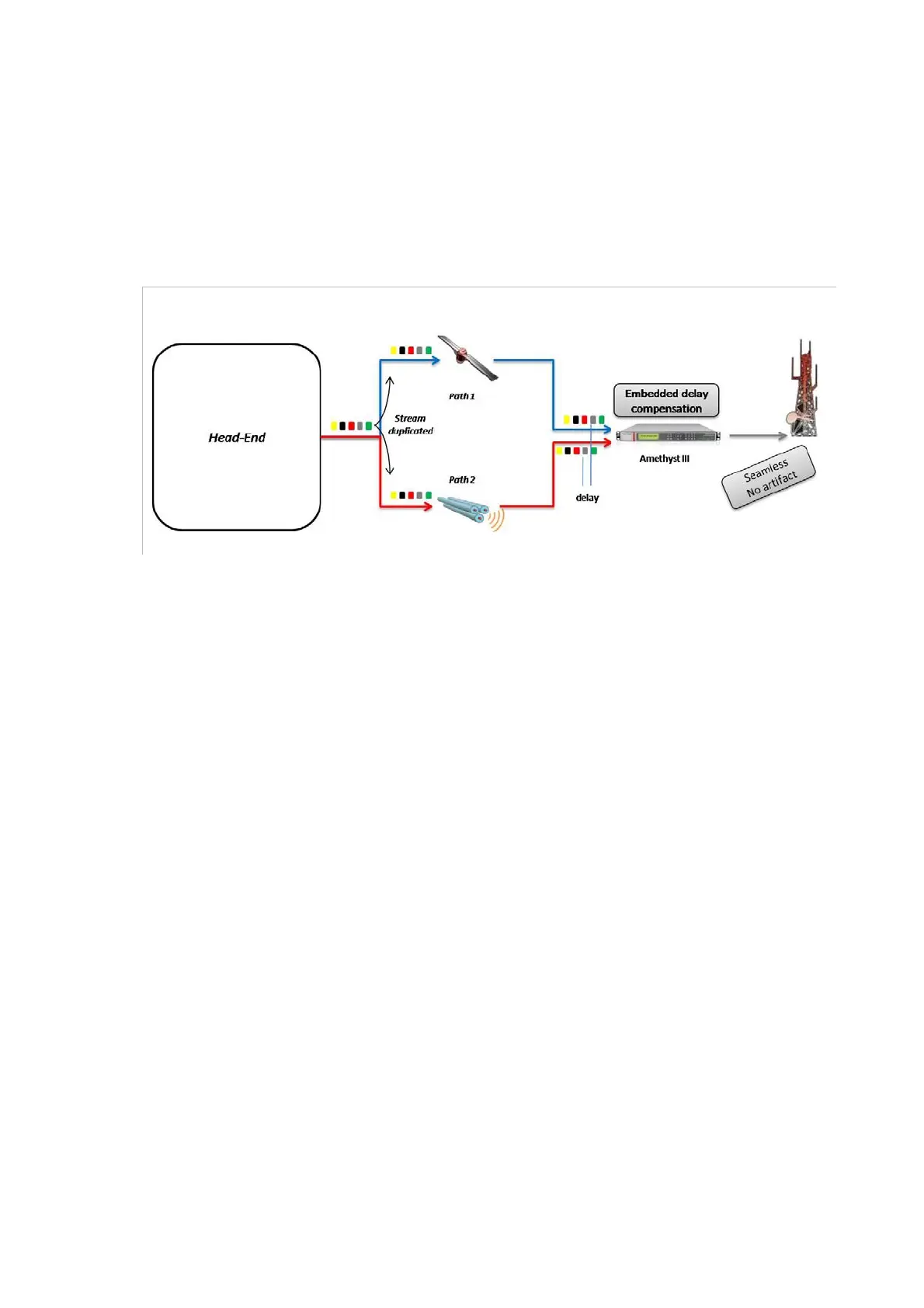

Figure 1-12. System application: network redundancy
For instance, on Figure 1-12 , the stream is conveyed more quickly by
path #1 than by path #2. Consequently, the second stream arrives later
tha
n the first one.
In this case, Amethyst III’s time delay feature lets you apply a delay on
input 1 (path #1). Secondly, the delay compensati
on feature lets you
resynchronize the two streams. Stream conveyed by path #1 is thus
del
ayed to be synchronized with the stream of path #2. In this case,
sync
hronization is made on a user-defined PID (e.g.: PAT with PID=0).
