Chapter 3 ’Web Browser Interface’ — Interface Description
Amethyst III DTV Smart Switch 175
User Manual
T2-MI Tab
The T2-MI tab provides information related to the T2-MI stream as
detailed in the standards.
To display the T2-MI tab
, double-click a T2-MI stream PID in the Snapshot
view or right-click it and select Display T2-MI information.

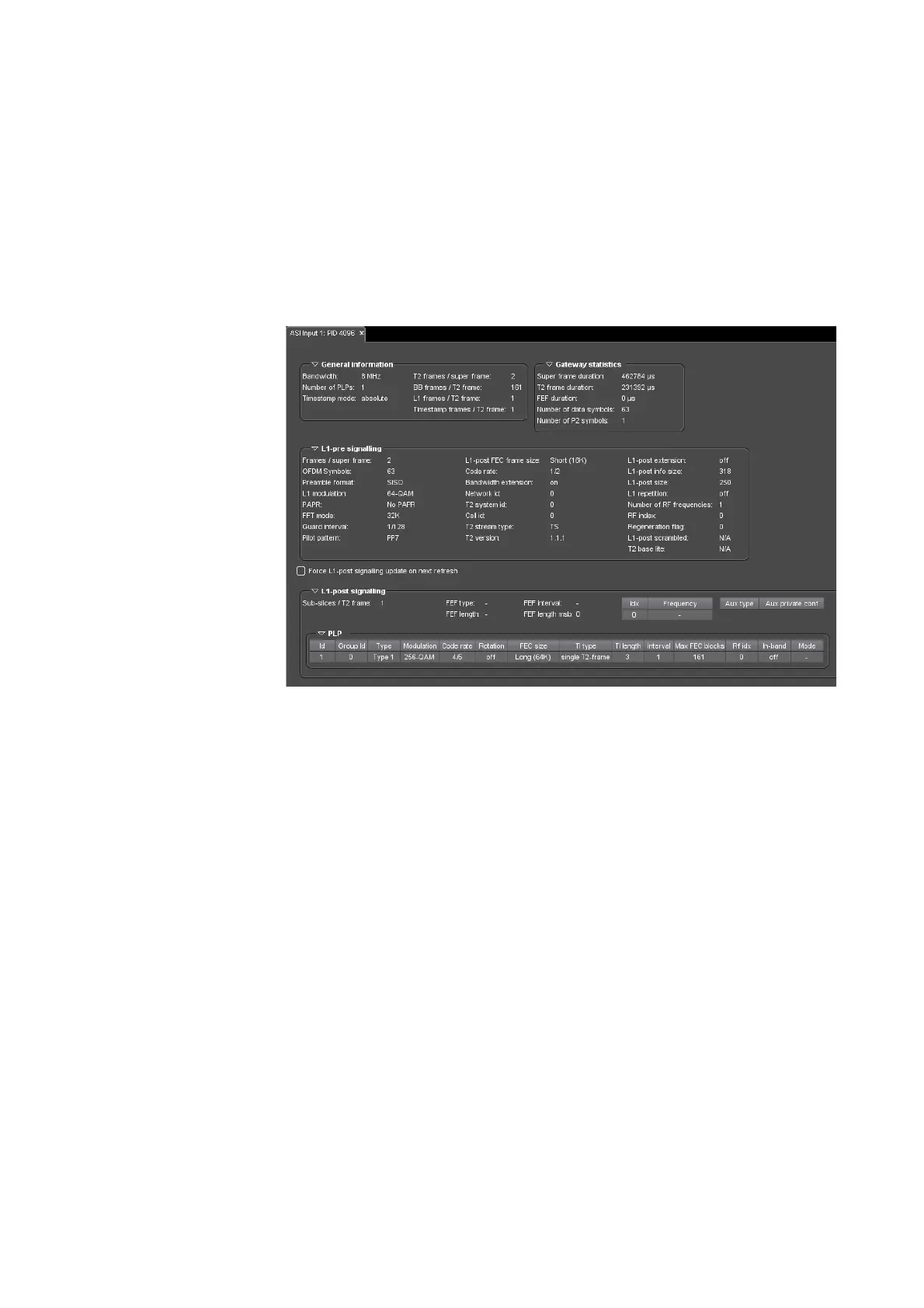

Figure 3-106. T2-MI tab
The values provided on this tab directly issue from the T2-MI L1 current
and T2-MI timestamp frames. For more details on the values, refer to the
documents listed in
Table A-23 ’Standard compliance’
on page 215.
This view is refreshed each time the T2-MI
information is updated, except
the L1 post signalling area, which is read less often. The Force L1 post
signalling update on next refresh option lets you force the update of this
area.
