Chapter 3 ’Web Browser Interface’ — Basic Settings
90 Amethyst III DTV Smart Switch
User Manual
Getting an Overview of the Quality of Service
You can then go to the Test s tab to have a global overview of the quality
of service of a specific input. Alarms are sorted by TR 101 290 level and
advanced level.

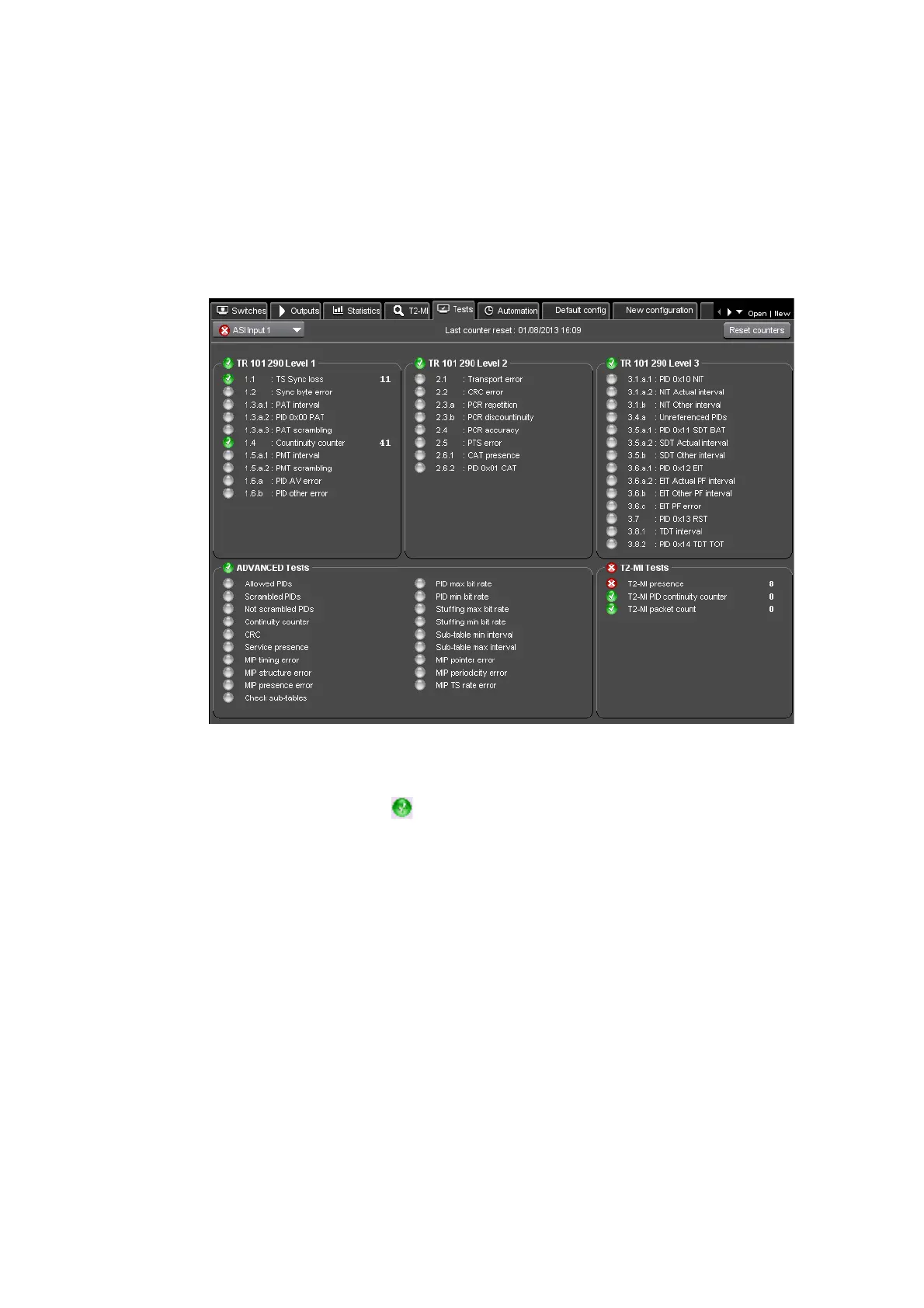

Figure 3-34. Supervising the quality of service of a specific input
The quality of service can be assessed through the LED and counters
associated to the configured tests.
If the LED is green , the corresponding test is configured, and there
is currently no corresponding current alarm. The associated counter
indicates
the number of alarms that occurred on the selected input
since the last counter reset.
Click on the Reset Counters button at the top right of the screen to reset
all alarms counters for this input.
For more information on this tab, refer to the
Section ’Tests Tab’
on
page 174.
