Chapter 3 ’Web Browser Interface’ — Interface Description
Amethyst III DTV Smart Switch 165
User Manual
FEC can also be enabled through the front panel or the SNMP interface.
When the FEC has been deactivated:
FEC correction: the FEC sessions are not taken into account and no
FEC correction is performed.
FEC generation: no FEC packet generation using FEC information is
performed.
Outputs Tab
The
Outputs
tab is used to:
Display the outputs status
View the output source
Configure the monitoring outputs
Check which physical GigE Ethernet interfaces are effectively linked to
a TS over IP interface (IP platform)

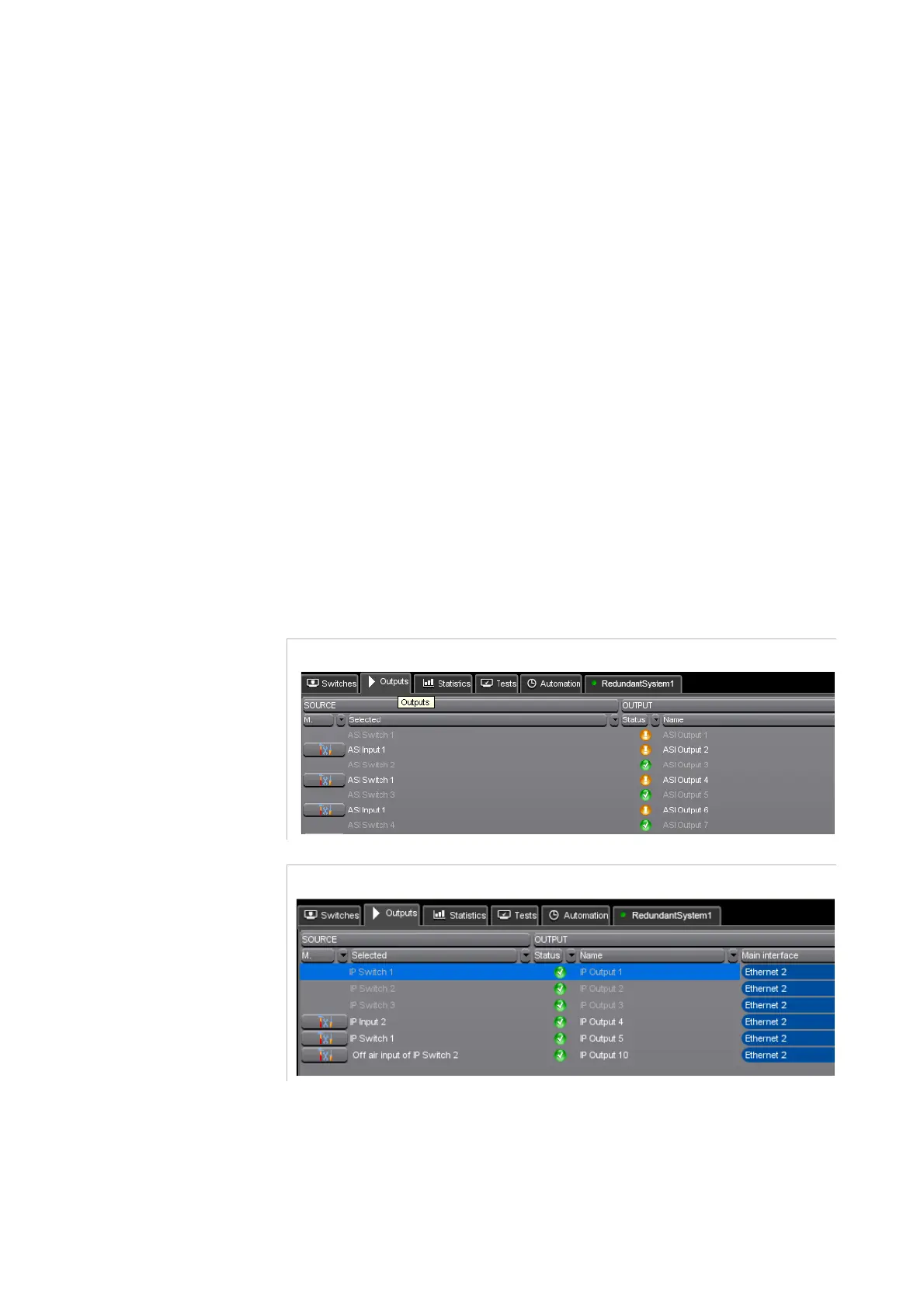

Figure 3-97. Outputs tab
The
Outputs
tab displays a list of all outputs with an indication of the
content that is broadcast and also the main and backup IP destinations
(when applicable).
