Examples of Switches Associations
Example 1:

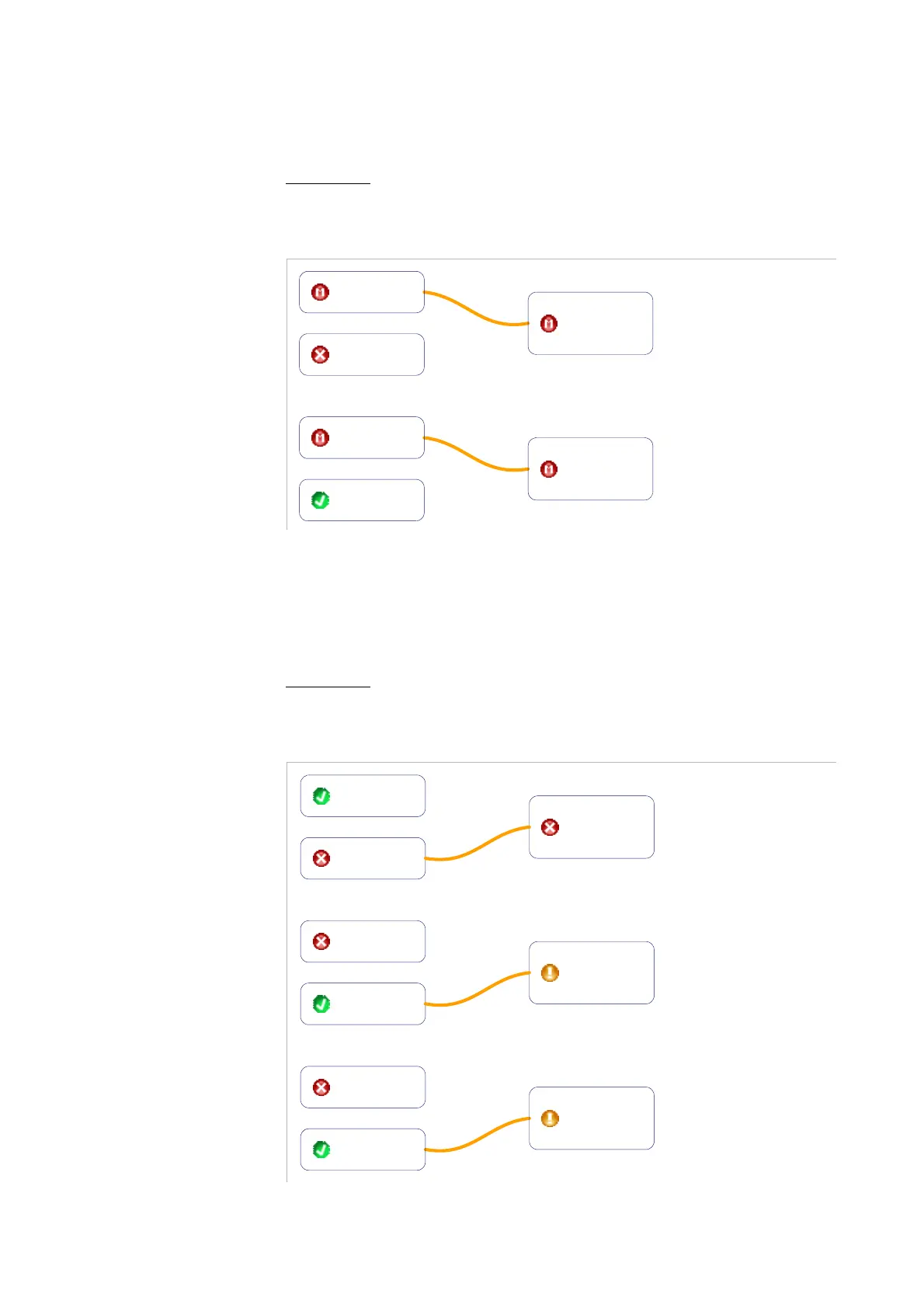

Figure 3-47. Switches association: example 1
Switch 1
redundancy
Switch 2
redundancy
Input 1
Input 2
Input 3
Input 4
 Highest severity of the primary inputs = Major
 Highest severity of the secondary inputs = Critical
Major
< Critical (see Table 3-8 on page 135 for the details on severity)
=> Amethyst III chooses to use the primary inputs.
Example 2:
Figure 3-48. Switches association: example 2
Switch 1
redundancy
Switch 2
redundancy
Input 1
Input 2
Input 3
Input 4
Switch 3
redundancy
Input 5
Input 6
