Chapter 3 ’Web Browser Interface’ — Interface Description
172 Amethyst III DTV Smart Switch
User Manual
Ethernet, FEC Tab
To access this view, in the Snapshot panel, right-click:
On an Ethernet input and choose
Display Ethernet information
.
On an IP input with FEC correction enabled, and choose
Display FEC
information
. This is available only if you have purchased the FEC
option.
The Ethernet, FEC tab i
s displayed and provides statistics on the input.
It also indicates the date of the last counter reset, and the Re
set button
lets you reset the statistics on the selected input.
Ethernet Information
The Ethernet statistics area contains two types of information: RX
statistics and TX statistics.

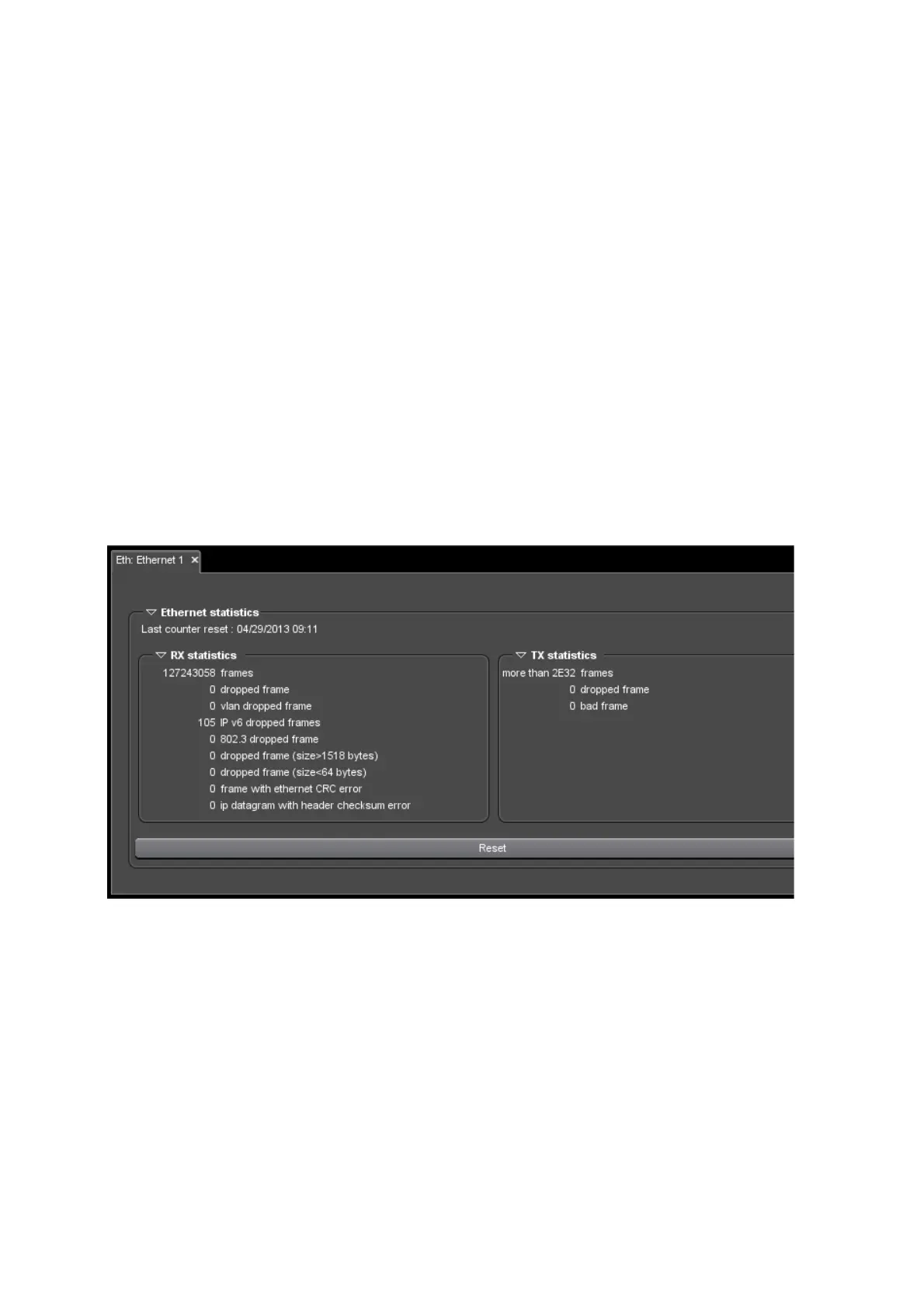

Figure 3-103. Ethernet tab
Each area displays the number of frames on which the statistics are
provided.
Each counter is independent
and automatically stops when the
maximum number of frame is received, as in the TX statistics area in
Figure 3-103
. You can see that this area reads "more than 2E32 frames",
which means 2
32
frames. In this case you must reset the statistics to keep
on monitoring the statistics.
