Chapter 3 ’Web Browser Interface’ — Interface Description
Amethyst III DTV Smart Switch 173
User Manual
FEC Information (Optional)
The FEC tab contains two area: RX FEC Statistics and RX FEC Scheme.

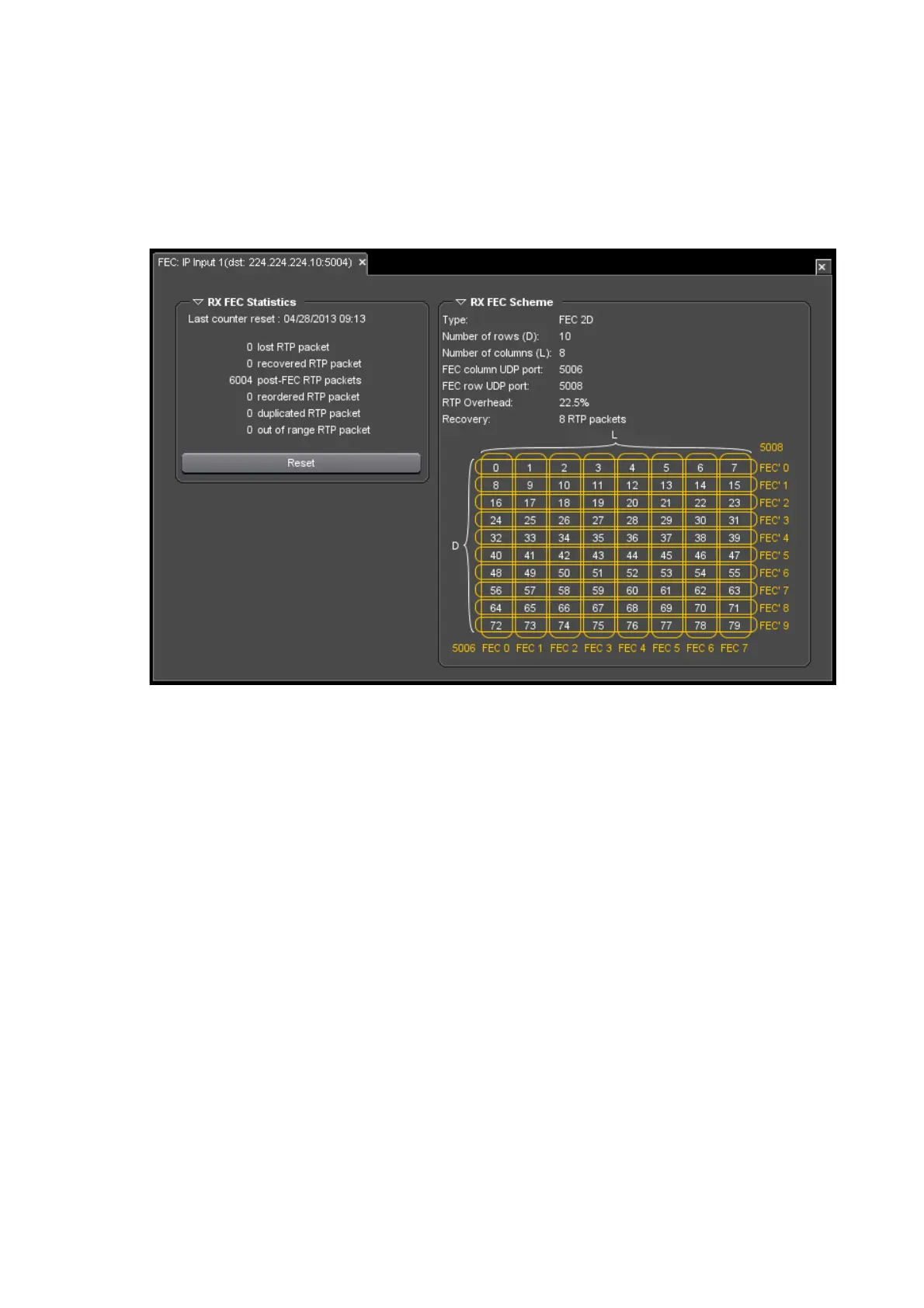

Figure 3-104. FEC information tab
RX FEC Statistics
This area indicates the number of RTP packets lost, recovered or
transmitted post FEC (including recovered, reordered, duplicated, out of
range packets).
RX FEC Scheme
This area provides a graphical representation of the FEC characteristics,
with the number of rows and columns of the FEC matrix, and the type of
FEC (1D or 2D).
