Defining What Content Should Be Sent To Monitoring Outputs
In ASI platforms, outputs that are not configured in the main
configuration are considered as monitoring outputs.
In IP platforms, the monitoring outputs shall be manually declared.
This view lets you define what content should
be sent to monitoring
outputs.

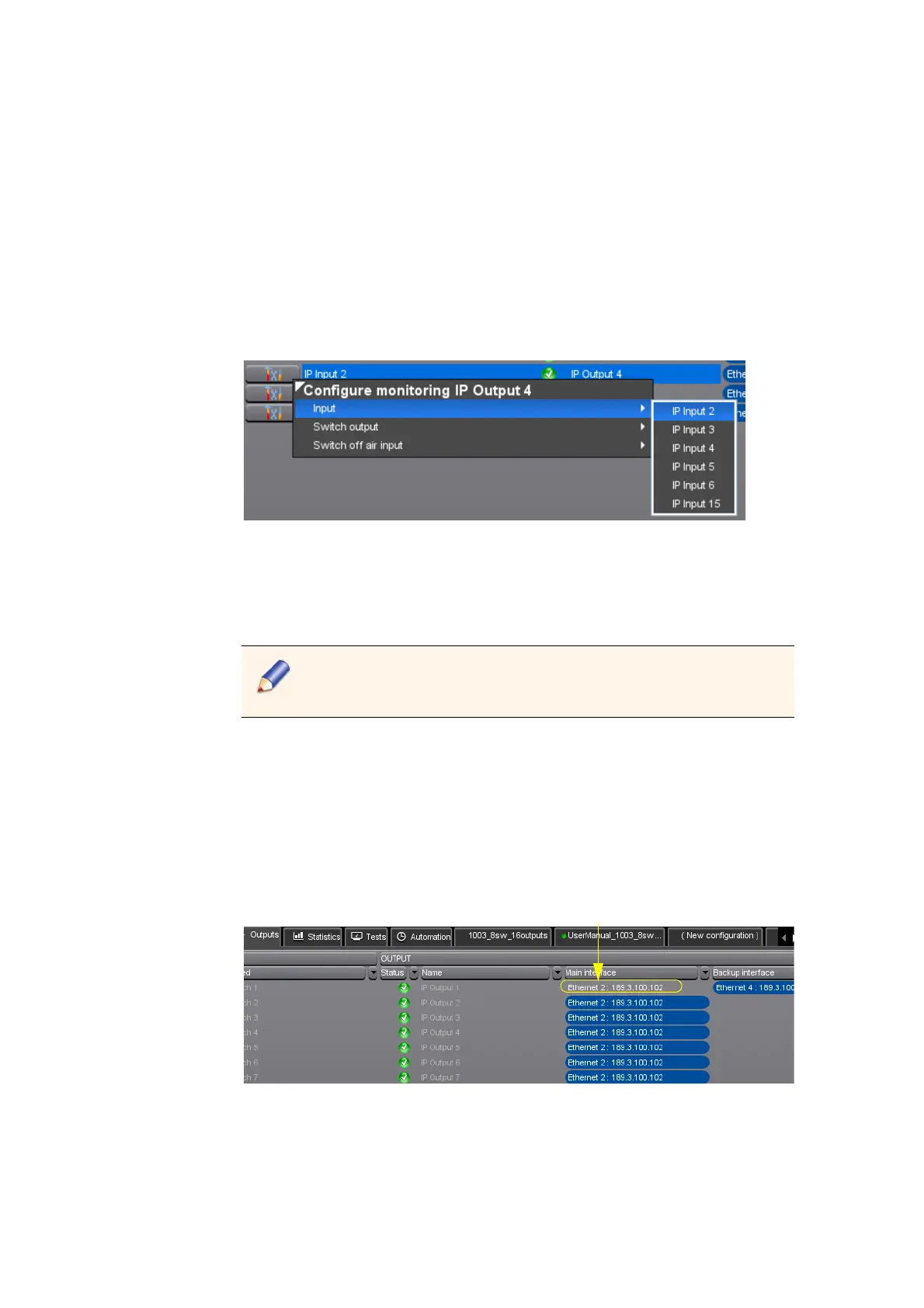

Figure 3-98. Switches view - Output content selection
For each monitoring output, you can choose to broadcast:
The content of one input
The content selected by a switch
The content not selected by a switch
A selection may be refused if the maximum number of outputs
allowed for the selected element is reached. To know this
number, see
Section ’Input/Output Limitations’
on page 210
.
Performing a Signal Redirection on Amethyst III (on IP platforms)
To redirect the signal, click the main or backup interface that is not
currently used (i.e. on grey background). The backup interface can be
configured.
Figure 3-99. Redirecting the signal
IP switches
Click here to redirect the signal of IP Switch 1
