Appendix B ’SNMP Management’ — Getting Input Snapshot and Statistics
244 Amethyst III DTV Smart Switch
User Manual

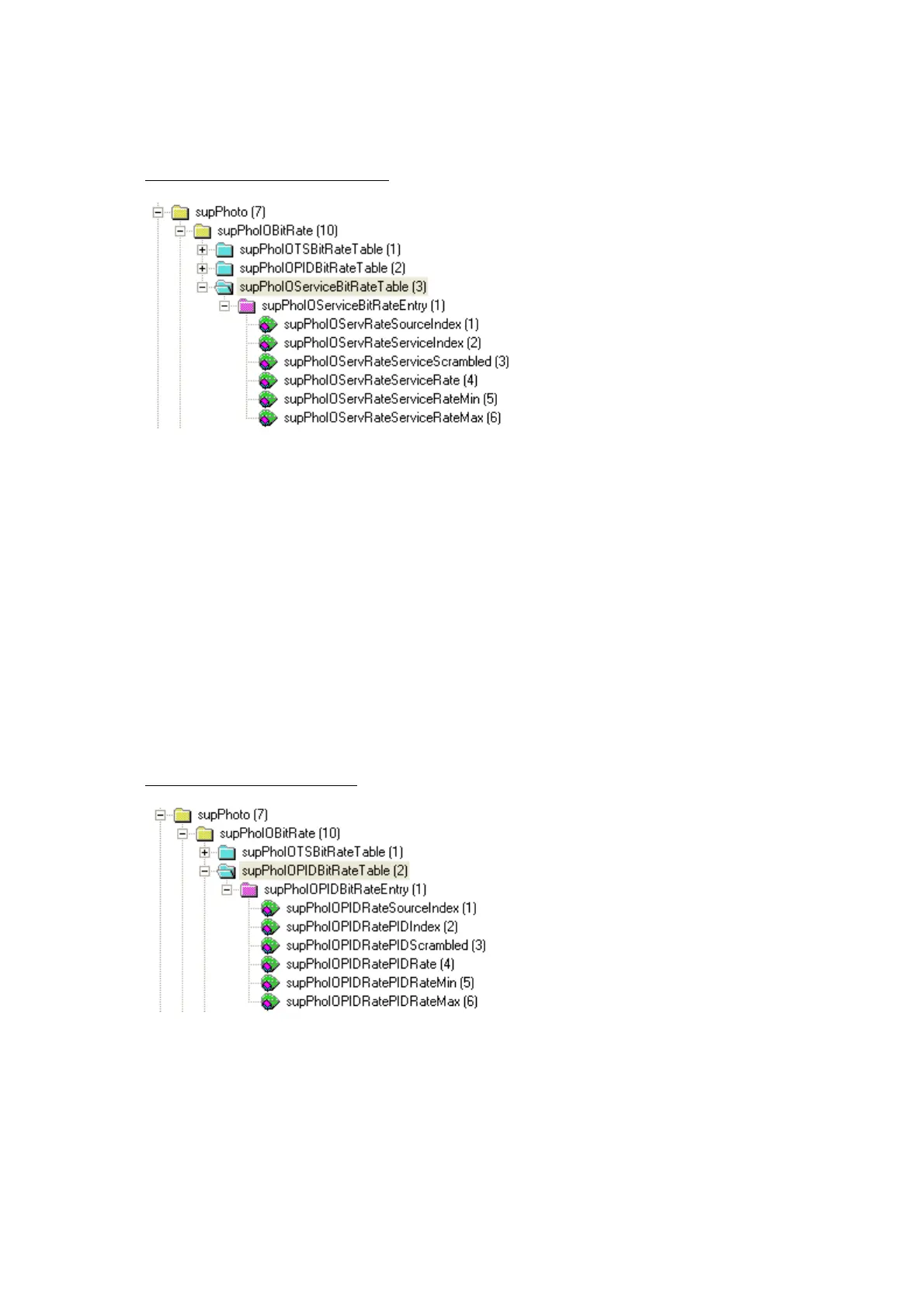

supPhoIOServiceBitRateTable
supPhoIOServRateSourceIndex source index (element ID)
supPhoIOServRateServiceIndex service index (service id)
supPhoIOServRateServiceScrambled 0 if the service is clear during the 5 seconds
period
else

1 if the service is scrambled
A service is scrambled if one of its component is scrambled according to the TSC flag.
supPhoIOServRateServiceRate average bit rate of the service
supPhoIOServRateServiceRateMin minimum bit rate of the service
supPhoIOServRateServiceRateMax maximum bit rate of the service
supPhoIOPIDBitRateTable
supPhoIOPIDRateSourceIndex source index (element ID)
supPhoIOPIDRatePIDIndex PID index (PID)
supPhoIOPIDRatePIDScrambled 0 if the PID is clear during the 5 seconds period
else

1 if the PID is scrambled
A PID is scrambled according to the TSC flag.
