Chapter 1 ’Overview’ — Chassis Description
Amethyst III DTV Smart Switch 35
User Manual
The following figures show wiring examples of the GPI connectors.

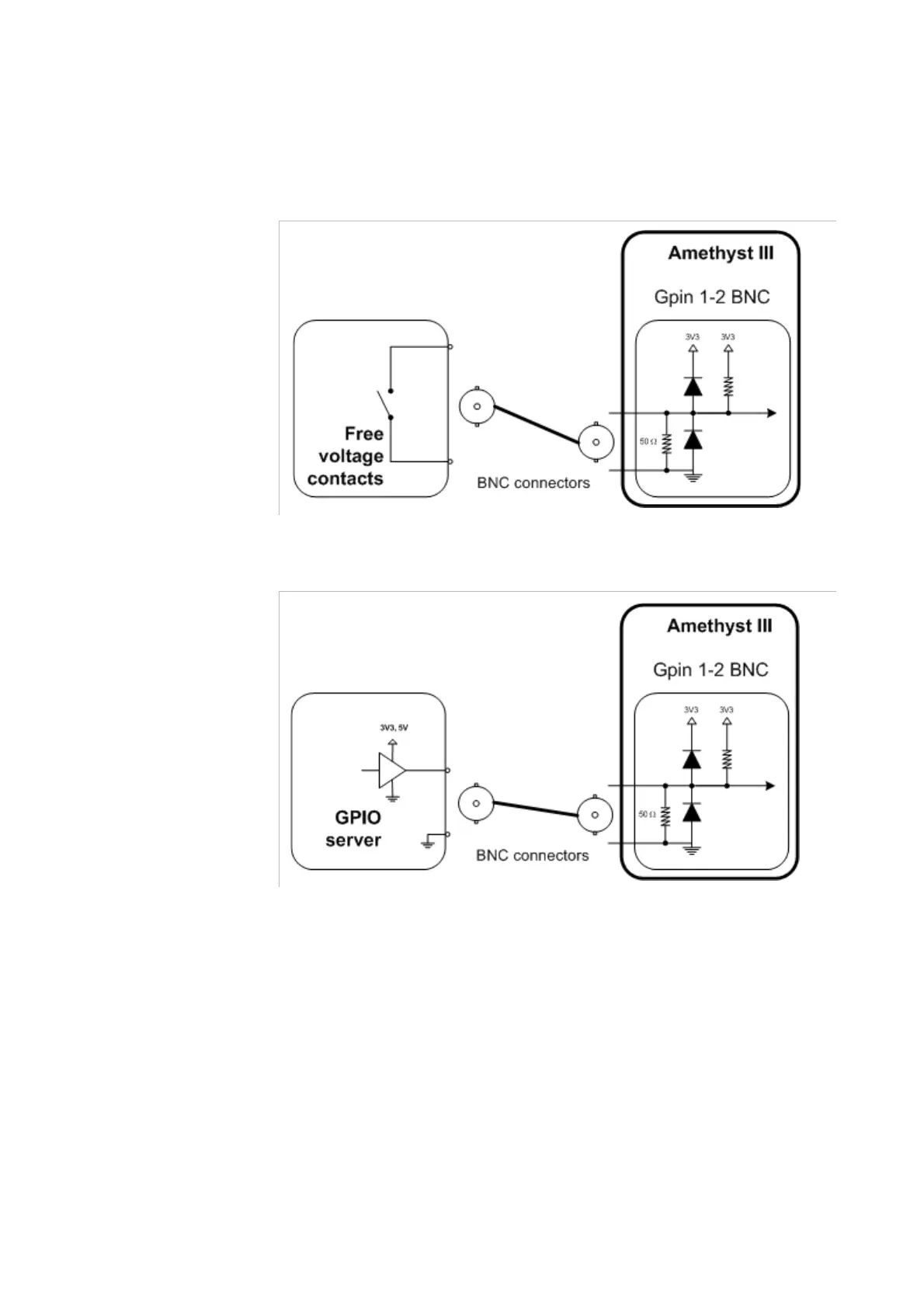

Figure 1-25. BNC GPI wiring with free voltage contacts
Figure 1-26. BNC GPI wiring with a GPIO server
