OPUS Projektor Manual
CAN

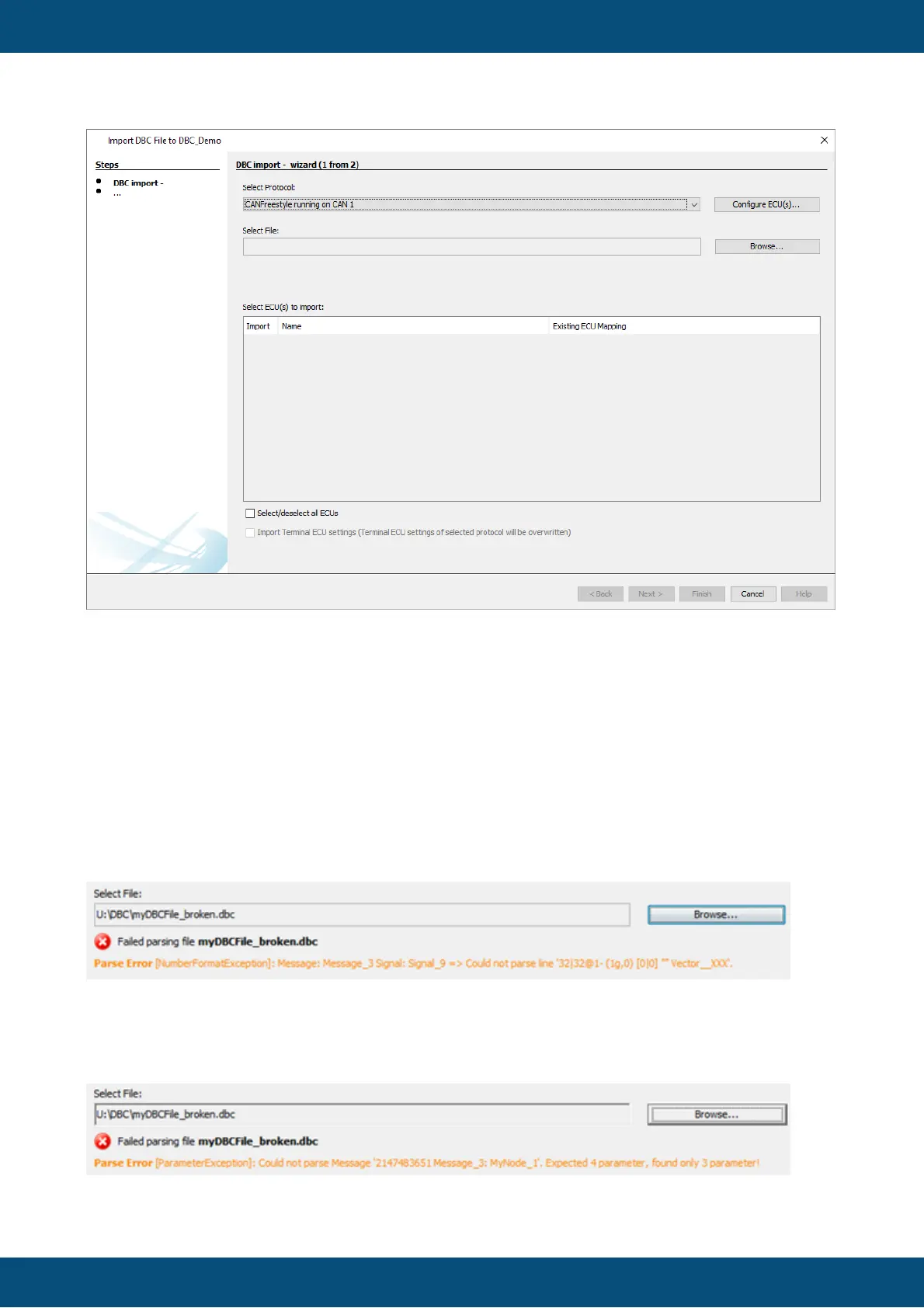

If no CAN protocol has been added to the project, an import of a DBC file isn't possible, so
first at least one CAN protocol has to be added.
The Configure ECU(s) dialog can be reached directly from this dialog with the button
"Configure ECU(s)...".
If there are several protocols in the project, one has to be chosen for the DBC import, i.e. in
which protocol should the CAN mappings be added.
When a protocol has been added and / or chosen, a DBC file can be loaded.
The program will check the integrity of the DBC file. If there is a problem parsing the file, an
error message will be shown, indicating the problem with the file.
In this case the parsing failed with an error in the Message_3 of Signal_9. The hint
[NumberFormatExceoption] shows the root cause for this issue. In the example the Factor 1g
could not be parsed.
