OPUS Projektor Manual
CAN

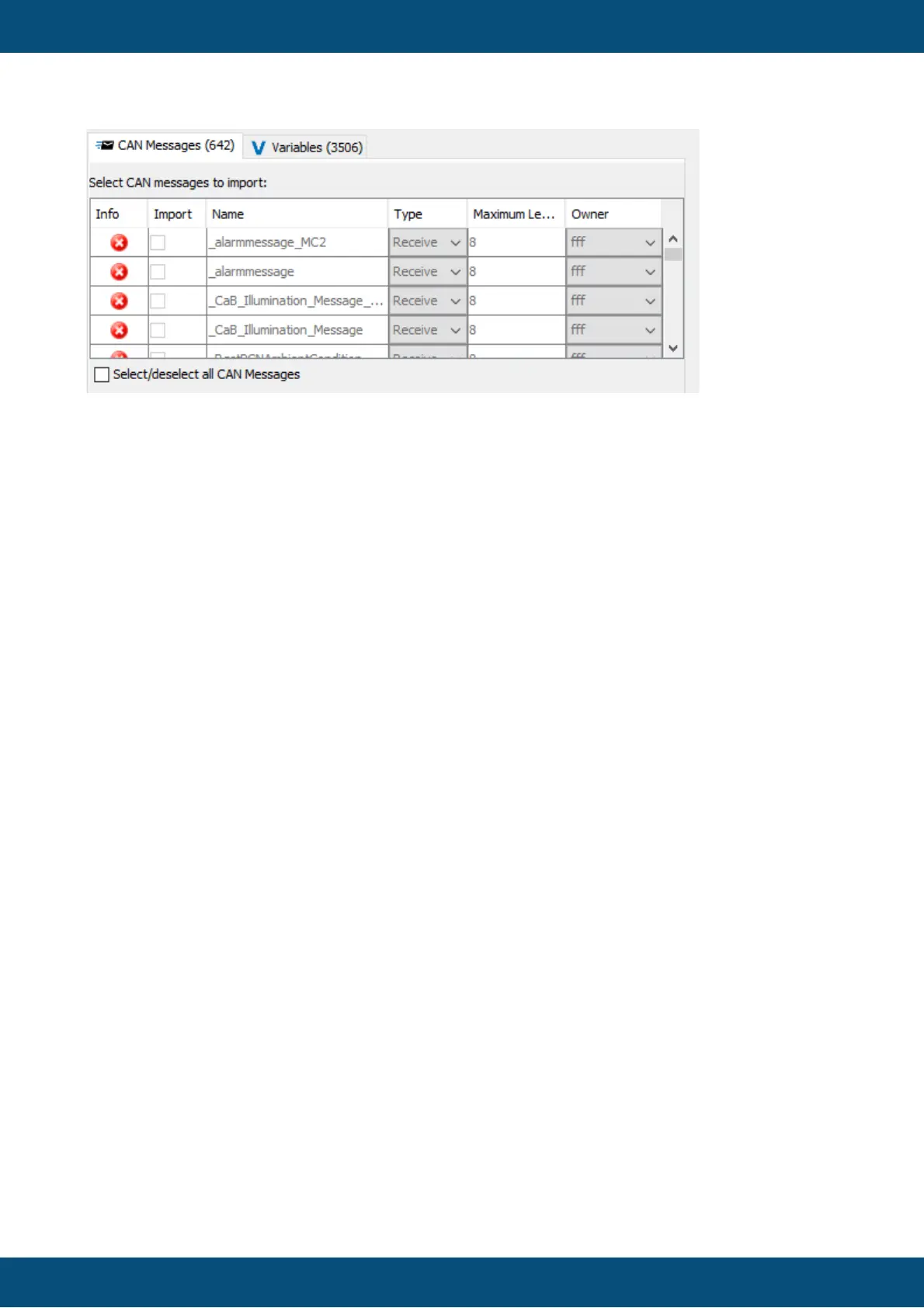

The direction type (Receive or Transmit) can be set in the column Type. The name of the CAN
mapping can also be changed from what is given in the DBC file. Finally, the owner can be
changed in the column Owner to specify from which ECU the message will be sent.
When a CAN message is selected for import, the according variables are automatically
selected for import, as well.
The table below the CAN messages shows the mapped variables of the currently selected
CAN message.
The variable name, index, sub index and owner can be changed in this table. When the name,
index and sub index is changed, it is checked if there is a conflict with existing variables. If
there is, the according variable will be marked in red and an import is not possible.
