OPUS Projektor Manual
CAN

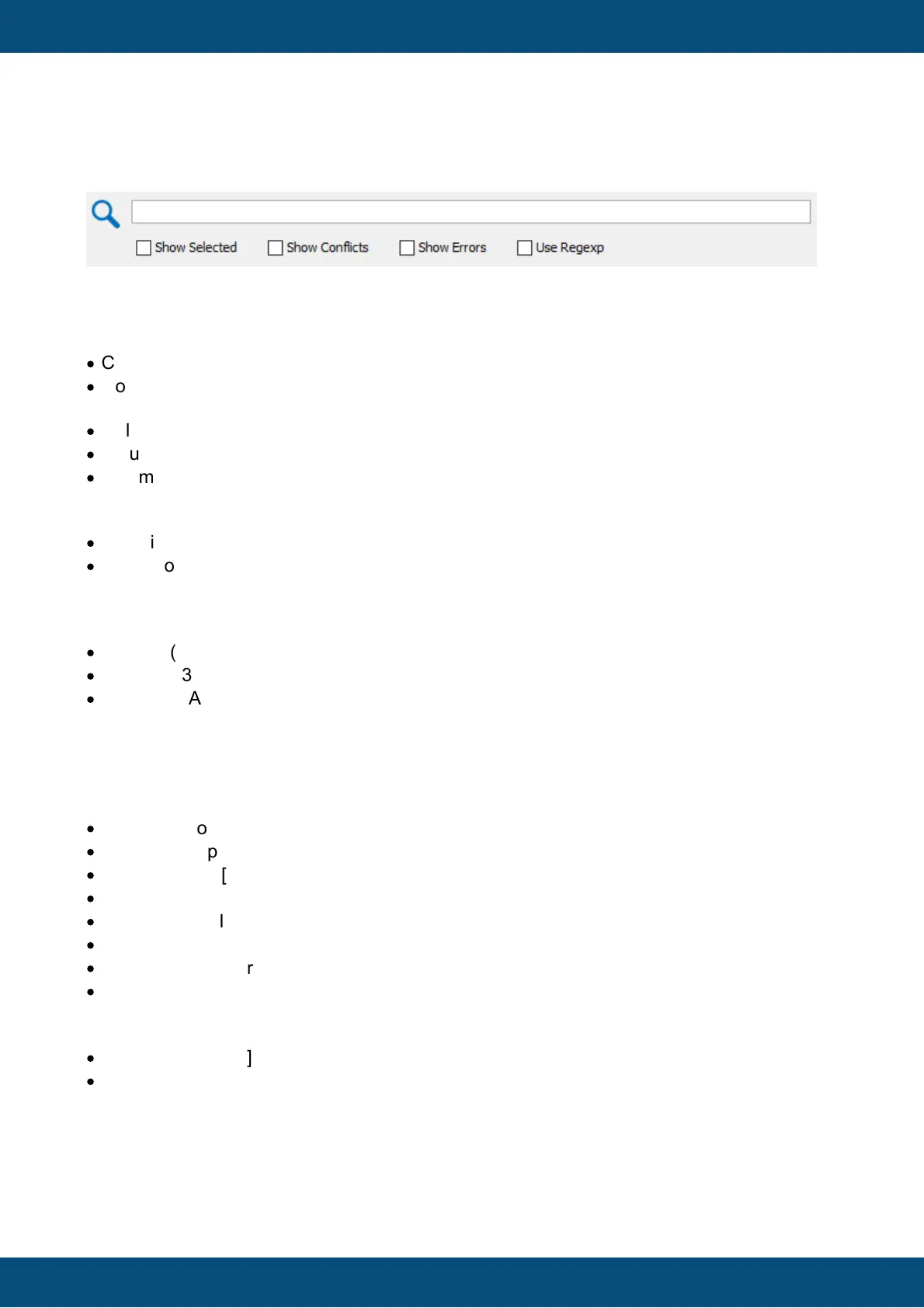

Additionally, regular expressions can be used to search in the DBC file data.
The search can also be used to specifically search in certain data fields:
CAN Messages tab:
· Column Import [boolean] => #Import=false/true => true if Object is selected for import
· Column Name [String] => #Name=<MappingName> => NOTE: Variable Mappings Name
will also be considered!
· Column Type [String] => #Type=Receive/Transmit
· Column Length [Integer] => #Length=8 #Length<=4
· Column Owner [String] => #Owner=<OwnerName>
Other searchable properties are:
· Description [Sring] => #Description=<Text>
· CanImport [boolean] => #CanImport=false/true => false shows all Mappings which can not
be imported!
Mappings conflicts which can not be solved by user! E.g. Messages with Length > 8 Byte for
CANFreestyle
· COB-ID (CANopen) [int] => #COB-ID=0x111
· PGN (J1939) [int] => #PGN=0x1200
· CAN-ID (CANFreestyle,) => #CAN-ID=0x16
Note: The term CAN-ID is used for all protocols, i.e. for CANopen it searches COB-IDs and
for J1939 PGNs.
Variables tab:
· Column Import [boolean] => #Import=false/true => true if Object is selected for import
· Column GroupName [String] => #GroupName=<GroupName>
· Column Name [String] => #Name=<VariableName>
· Column Length [Integer] => #Length=8 or #Length<=4
· Column Index [Integer] => #Index=0x3000
· Column SubIndex [Integer] => #SubIndex=0x01
· Column Owner [String] => #Owner=<OwnerName>
· Column CANMessage [String] => #CANMessages=<MessageName>
#Messages=<MessageName>
Other searchable Properties are:
· Description [Sring] => #Description=<Text>
· CanImport [boolean] => #CanImport=false/true => false shows all Variables which can not
be imported! e.g. Length of Variable is >32bit
Examples:
#CAN-ID=0x7e5 searches for all mappings with ID 0x7e5
