OPUS Projektor Manual

Miscellaneous

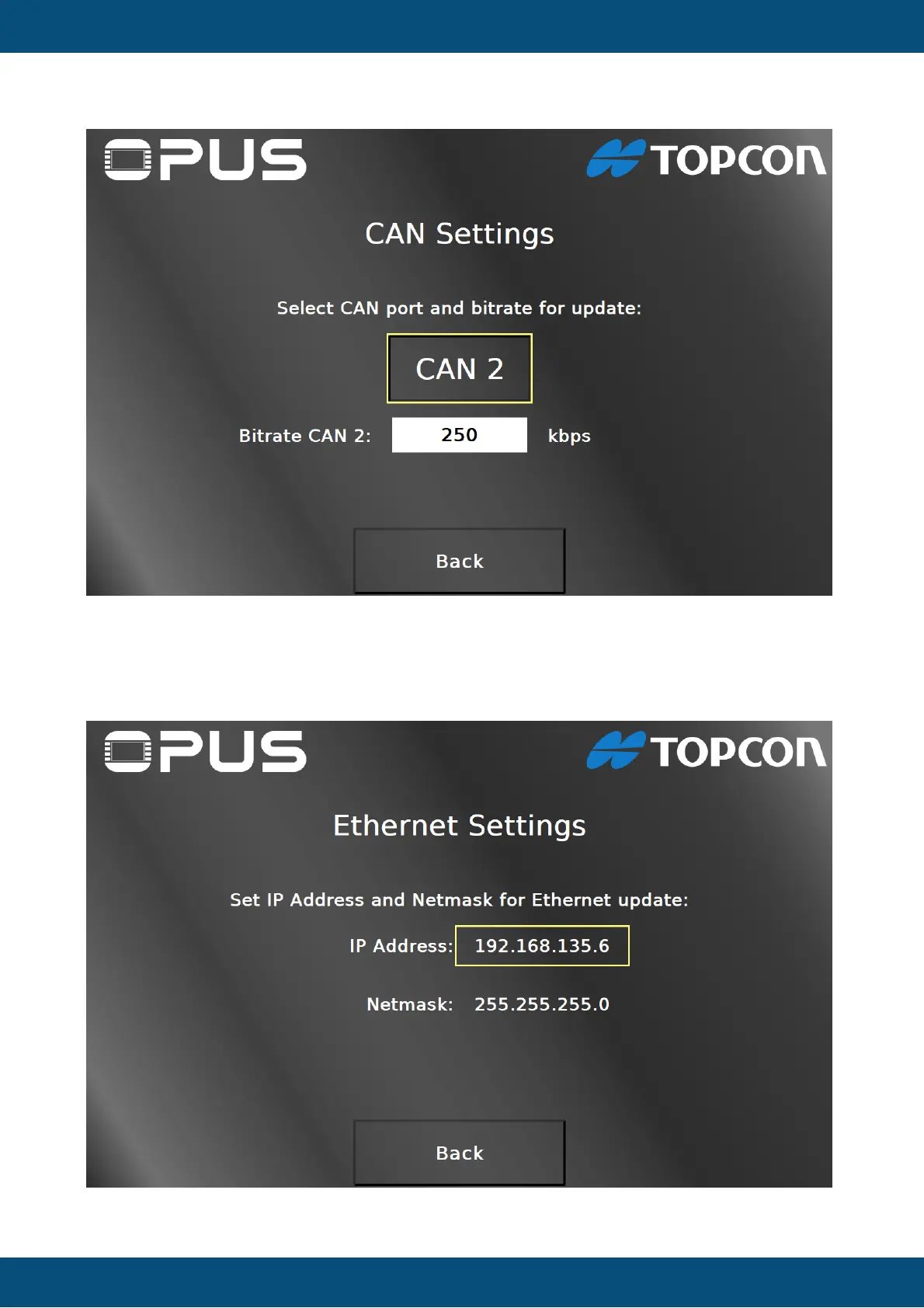

On the CAN Settings page you can set the CAN port that should be used for the project

download and the Bitrate for the project download for that port.

Back returns to the Updater Settings page.
