DISASSEMBLY and REPLACEMENT

4 - 259

4.11.4 Original jam access cover

(1) Take off the RADF front cover.

 P. 4-257"4.11.2 RADF front cover"

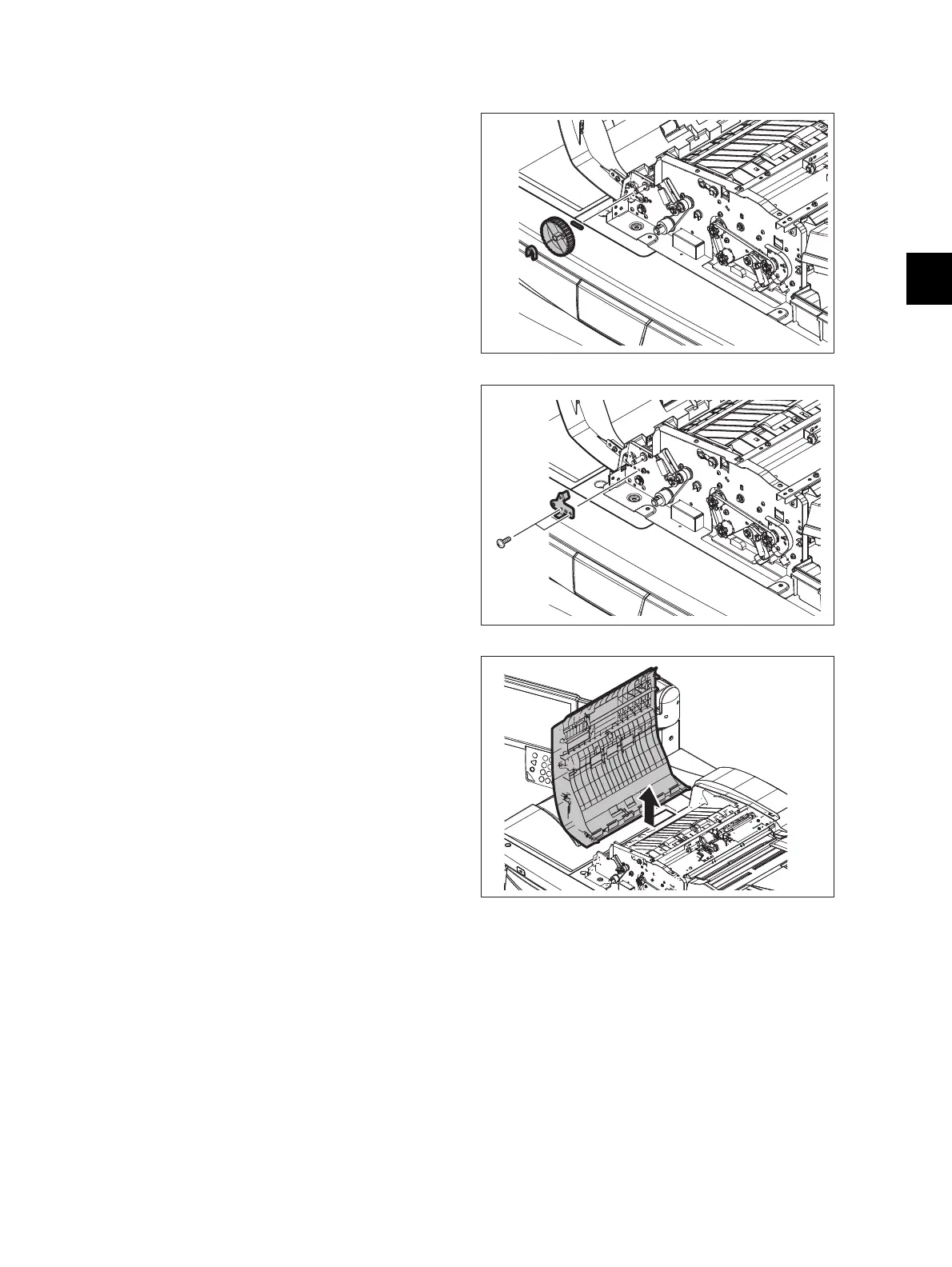

(2) Remove 1 clip and then the dial and pin.

Fig. 4-753

(3) Remove 2 screws and the hinge pin.

Fig. 4-754

(4) Slide the original jam access cover to take it

off.

Fig. 4-755
