Toshiba E-Studio 5540c - Adjustments and Checks Using Test Chart No. TCC-1; Points to be Measured in the Chart

6
© 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C
SETTING ADJUSTMENT
6 - 29
Adjustments and Checks using Test Chart No. TCC-1
Following items can be checked with the Test Chart No. TCC-1.
1. Points to be measured in the chart

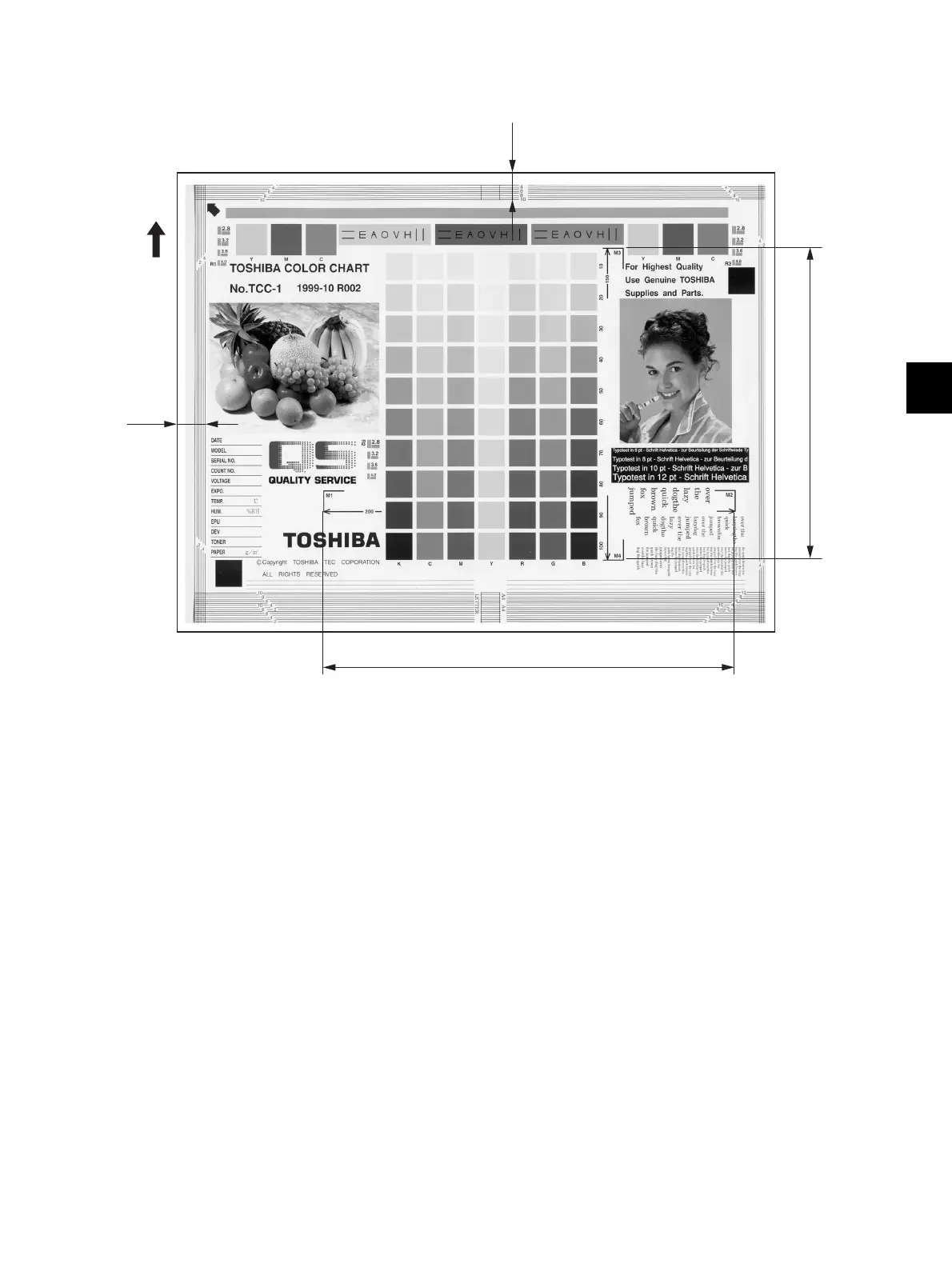

Fig.6-21
<Adjustment order>
[0] [5] [Power ON]  (Chart TCC-1)  [FAX]  [START] (A3/LD, 100%, Full color and Text/
Photo)
A: 05-4773  200±0.5 mm (0.1 mm/step)
B: 05-3030  5±0.5 mm (0.04 mm/step)
C: 05-3032 150±0.5 mm (0.05 mm/step)
D: 05-3031  10±0.5 mm (0.09 mm/step)
C
D
B
A
Feeding direction
