Setting
Testing and parameterizing RFID interfaces via the DTM
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com
07.00 | 2022/09 | 183
Enter the IP address of the device (example: 192.168.1.20).
Enter the IP address of the device (example: 192.168.1.254).
Optional: Enter the designation and device description.
Confirm entries with OK.

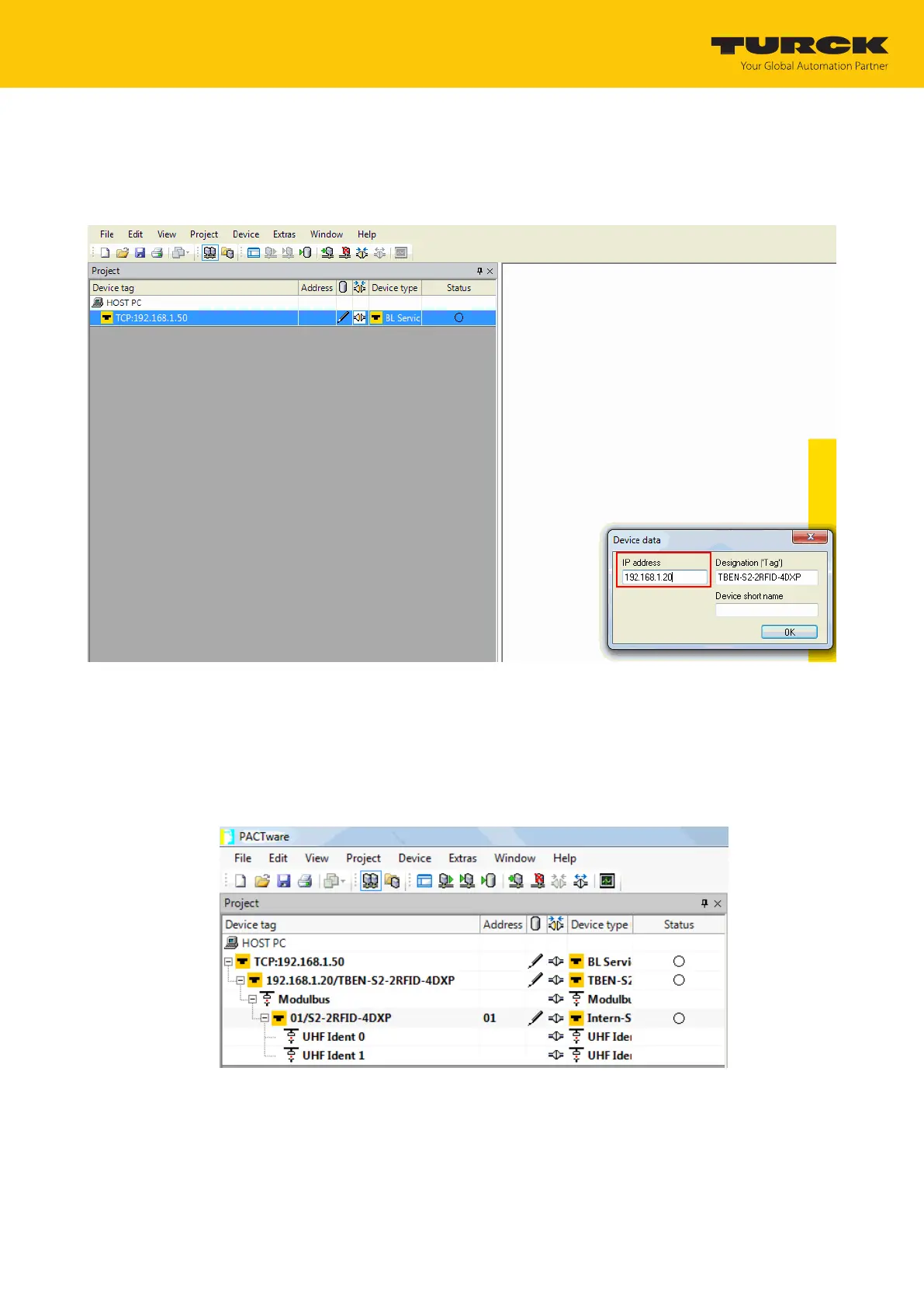

Fig.93: Entering the IP address
ü The project tree is complete.
Right-click the device in the project tree.
Click Connect.
a Once connected, you have read and write access to input and output data and to para-
meter data.
Fig.94: Complete project tree
