Commissioning

Connecting the device to a Modbus master with CODESYS

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 42

7.2.2 Renaming a Modbus slave

 Click Modbus slave in the project tree.

 Press [F2].

 Adjust the name of the slave in the project tree of the application.

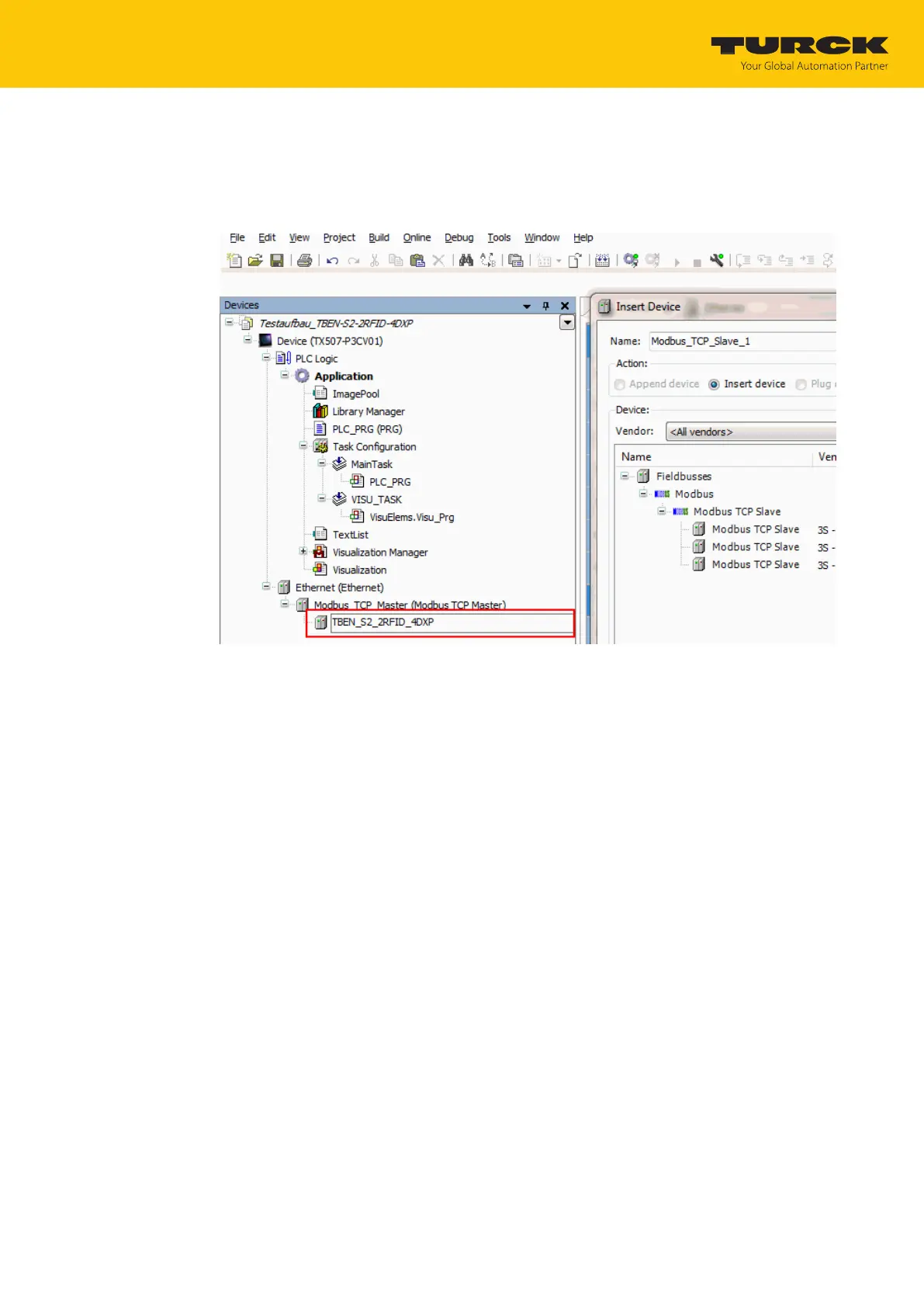

Fig.39: Assigning a device name (here: TBEN-S2-2RFID_4DXP)
