Flow chart: programming tags with a password
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com
07.00 | 2022/09 | 284
15.6 Flow chart: programming tags with a password
write desired
data to tag
start
define password
command:
set_read/write_head_password
( with default password
of tag = 0000)
command:
set_read/write_head_password
(with new password)
command:
set_tag_password
(with new password)
command:
set_tag_protection
(define tag protection)
end
ERROR = TRUE
error code
response code = command code
ERROR = TRUE
error code
response code = command code

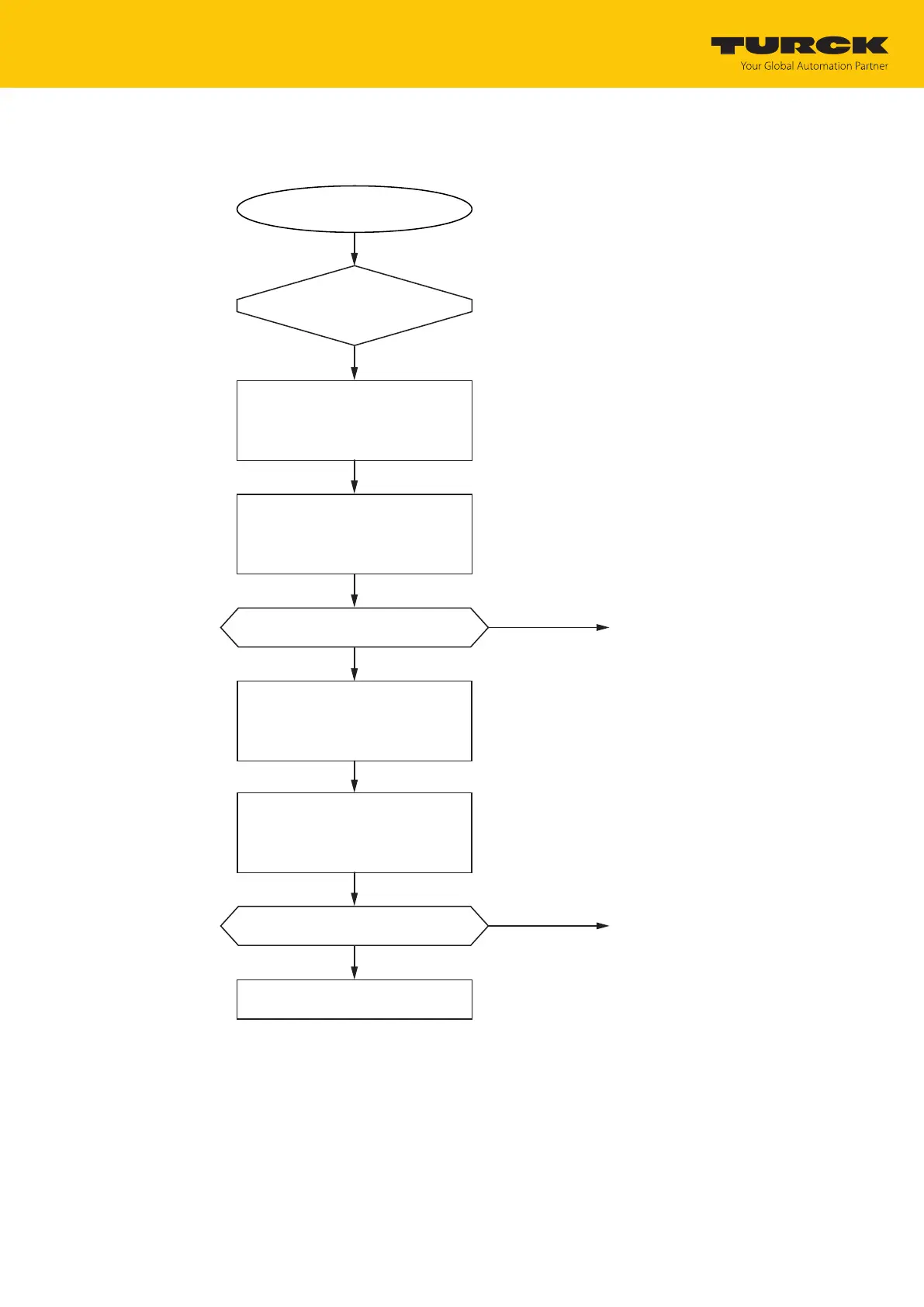

Fig.180: programming tags with a password
