7.2.5 Defining Modbus channels (registers)
Defining channel 0 (input data)
 Double-click the Modbus TCP slave.
 In the Modbus slave channel tab, select Add channel.
 Enter the following values:
n Name of channel
n Access type: Read holding registers
n Offset: 0x0000
n Length: 64 register (128 bytes)
 Confirm with OK.

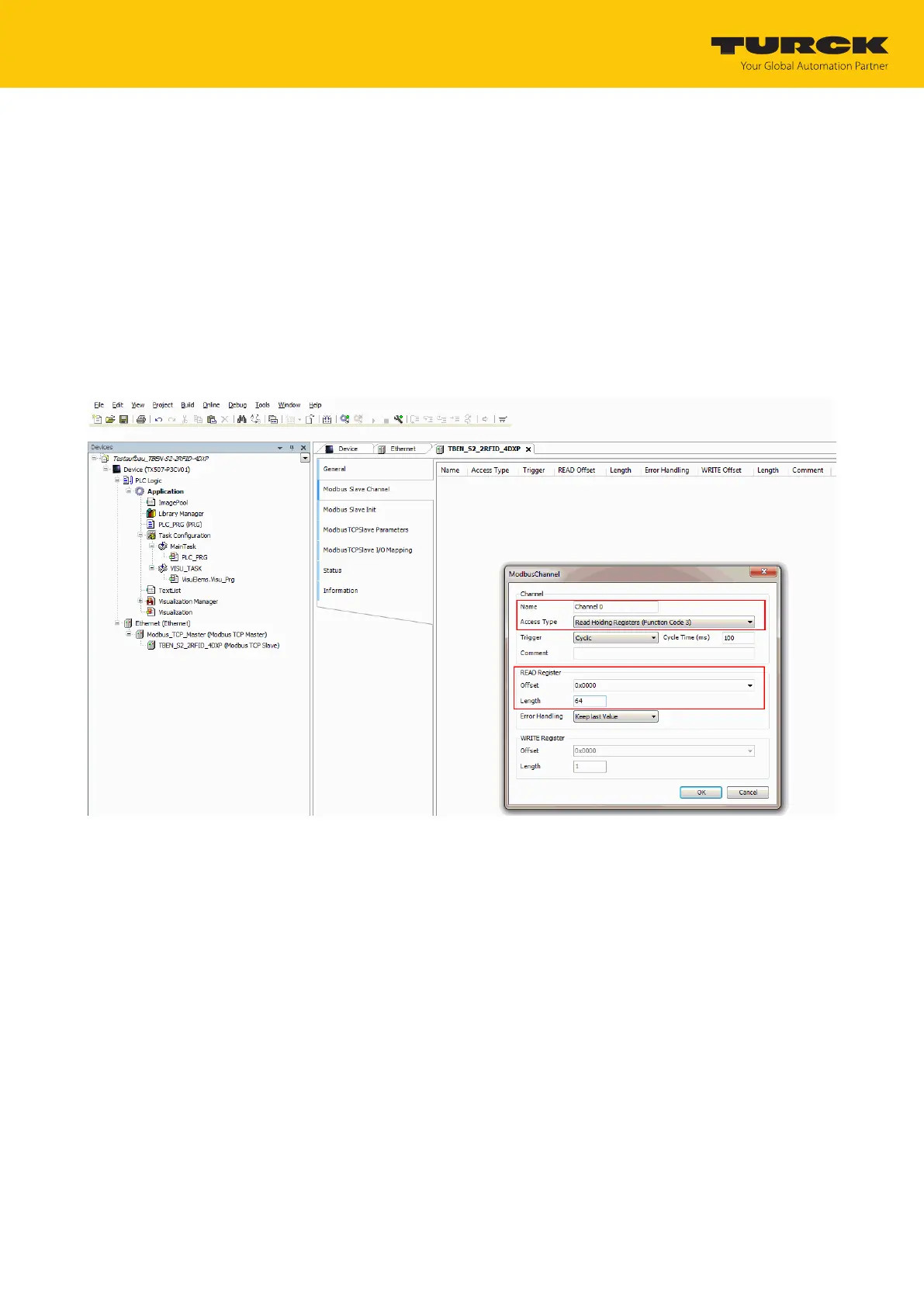

Fig.43: Defining READ registers
