Commissioning

Connecting the device to an EtherNet/IP scanner using RSLogix

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 57

7.3.2 Connecting the device with the controller

 Right-click I/O configuration Ò Ethernet.

 Click New module.

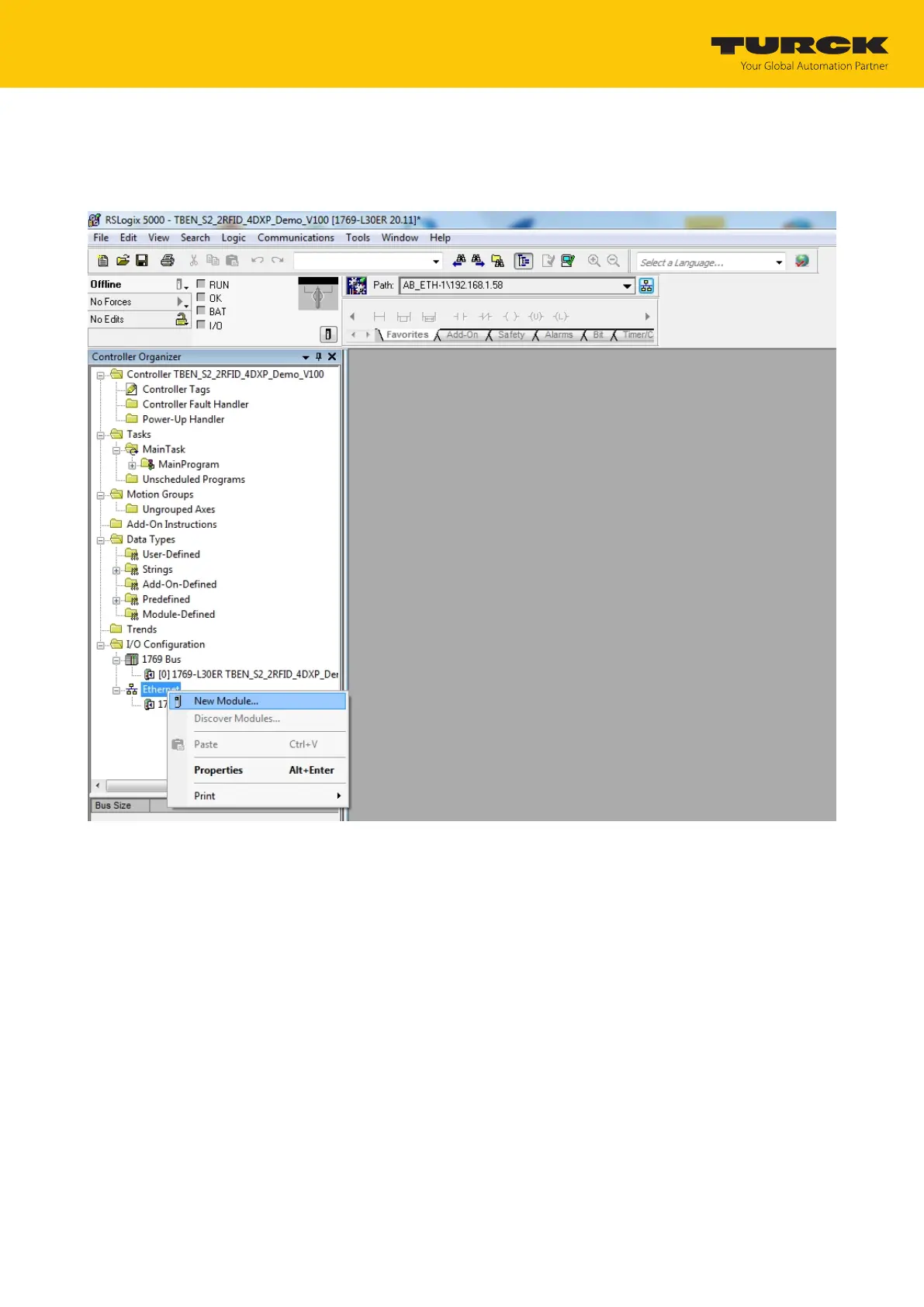

Fig.51: Adding a new module
