Commissioning

Connecting the device to an EtherNet/IP scanner using RSLogix

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 56

 Select EDS file: Select single file or folder (example: single file).

 Enter a path for the memory location of the EDS file.

 Confirm with Next.

a The installation wizard guides you through the further installation.

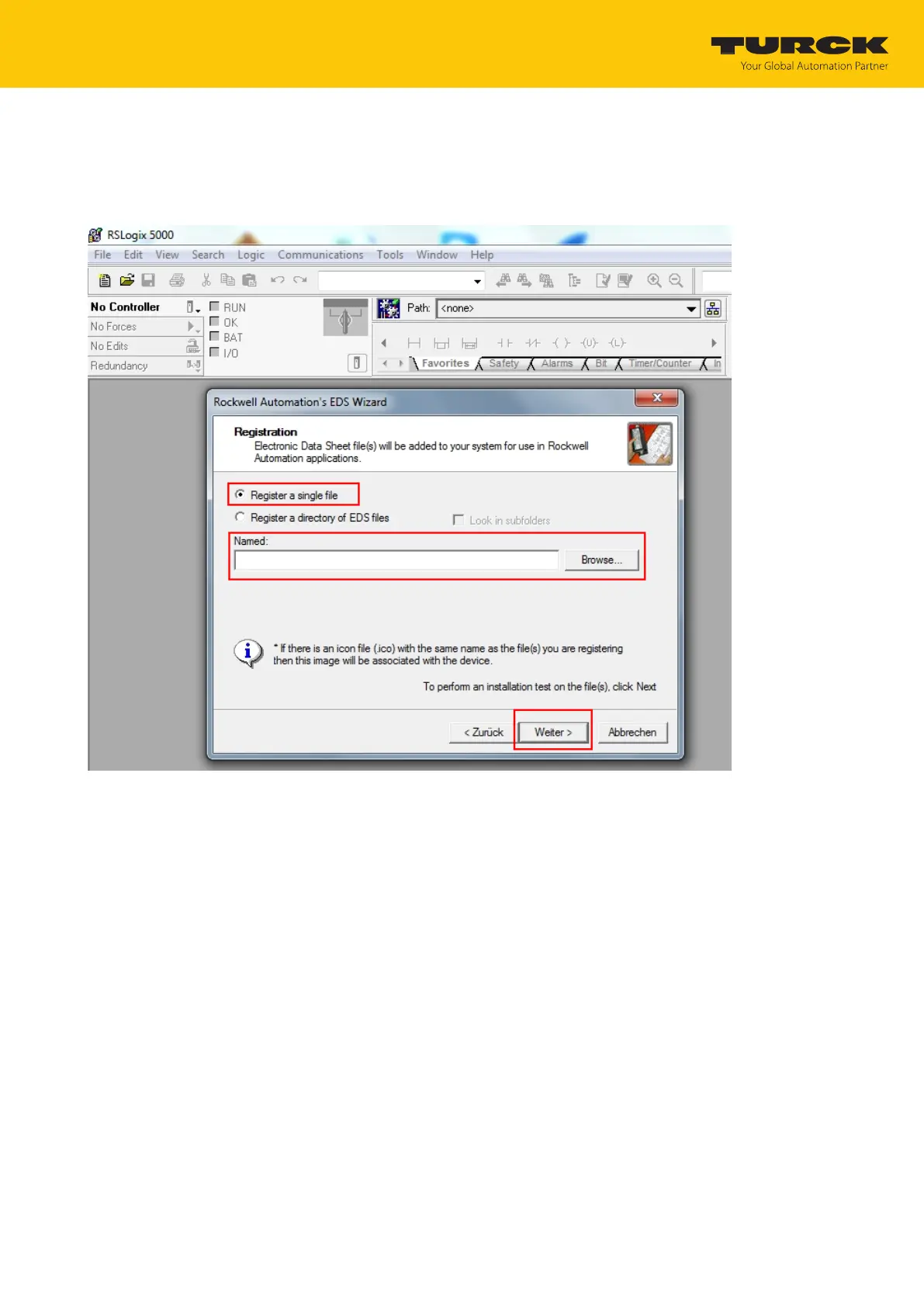

Fig.50: Selecting an EDS file
