Connection
Connecting RFID read/write devices
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com
07.00 | 2022/09 | 26
6.4 Connecting RFID read/write devices
The device has two 5-pin M12 plug connectors for connecting RFID read/write devices.

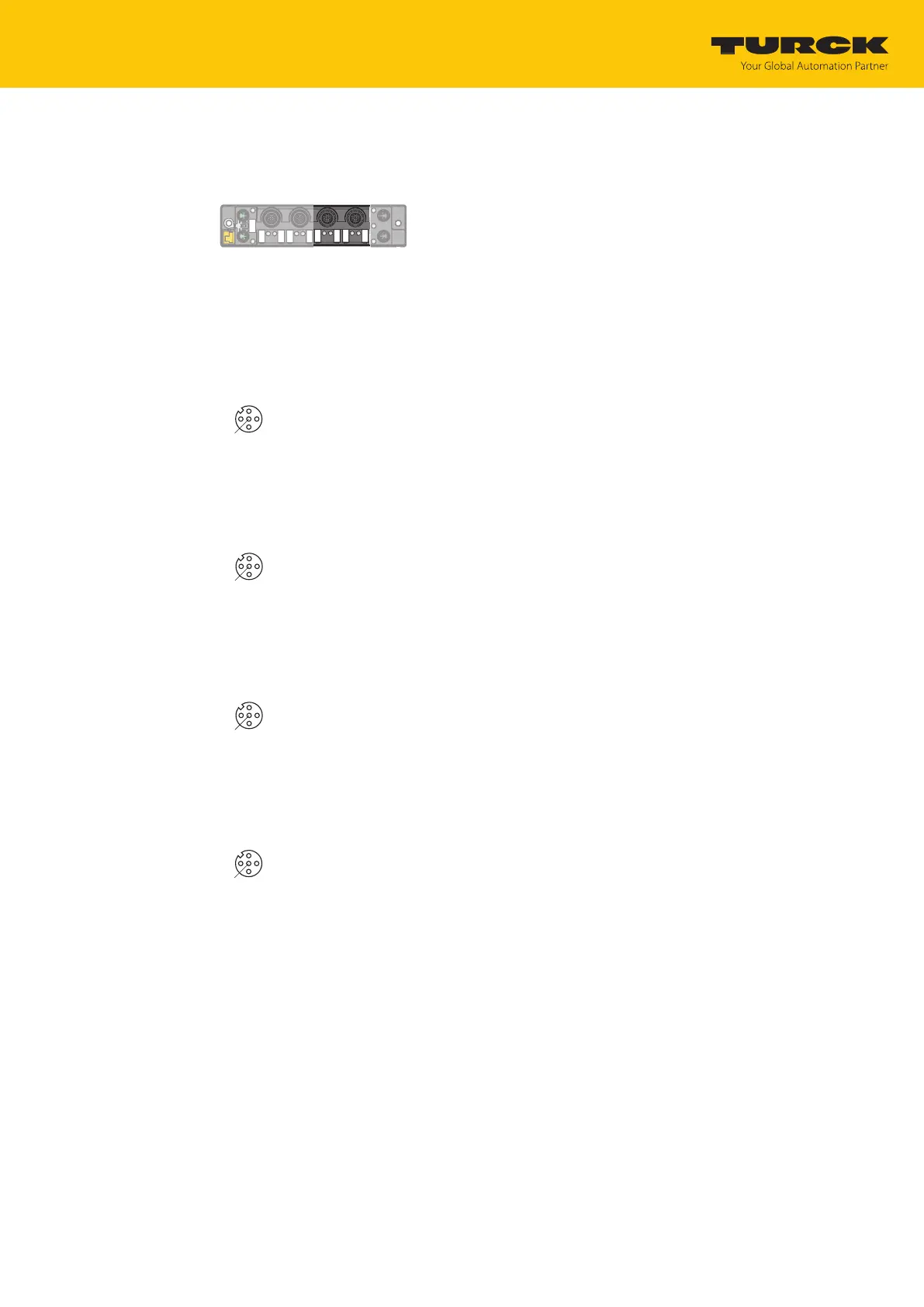

Fig.18: M12 plug connector for connecting read/write devices
 Connect the read/write devices to the device as per the pin assignment shown below.
 Provide unused male connectors with suitable sealing or blanking caps. The tightening
torque for the M4 screws is 0.5 Nm.
4
1 3
2
5
v
1 = V
aux
1
2 = Data B
3 = GND V1
4 = Data A
5 = FE/Shield
Fig.19: RS485 — pin assignment of the read/write device connections
4
1
3
2
5
v
1 = BN (+)
2 = BK (Data)
3 = BU (GND)
4 = WH (Data)
5 = shield
Fig.20: …/S2500 connection cables — pin assignment of the read/write device connections
4
1
3
2
5
v
1 = BN (+)
2 = WH (Data)
3 = BU (GND)
4 = BK (Data)
5 = shield
Fig.21: …/S2501 connection cables — pin assignment of the read/write device connections
4
1 3
2
5
v
1 = RD (+)
2 = BU (Data)
3 = BK (GND)
4 = WH (Data)
5 = shield
Fig.22: …/S2503 connection cables — pin assignment of the read/write device connections
