Commissioning

Connecting the device to a PROFINET master using the TIA Portal

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 83

7.4.6 Setting module parameters

 Choose Device view Ò Device overview.

 Select the module to be set.

 Click Properties Ò General Ò Module parameters.

 Set the Station parameters.

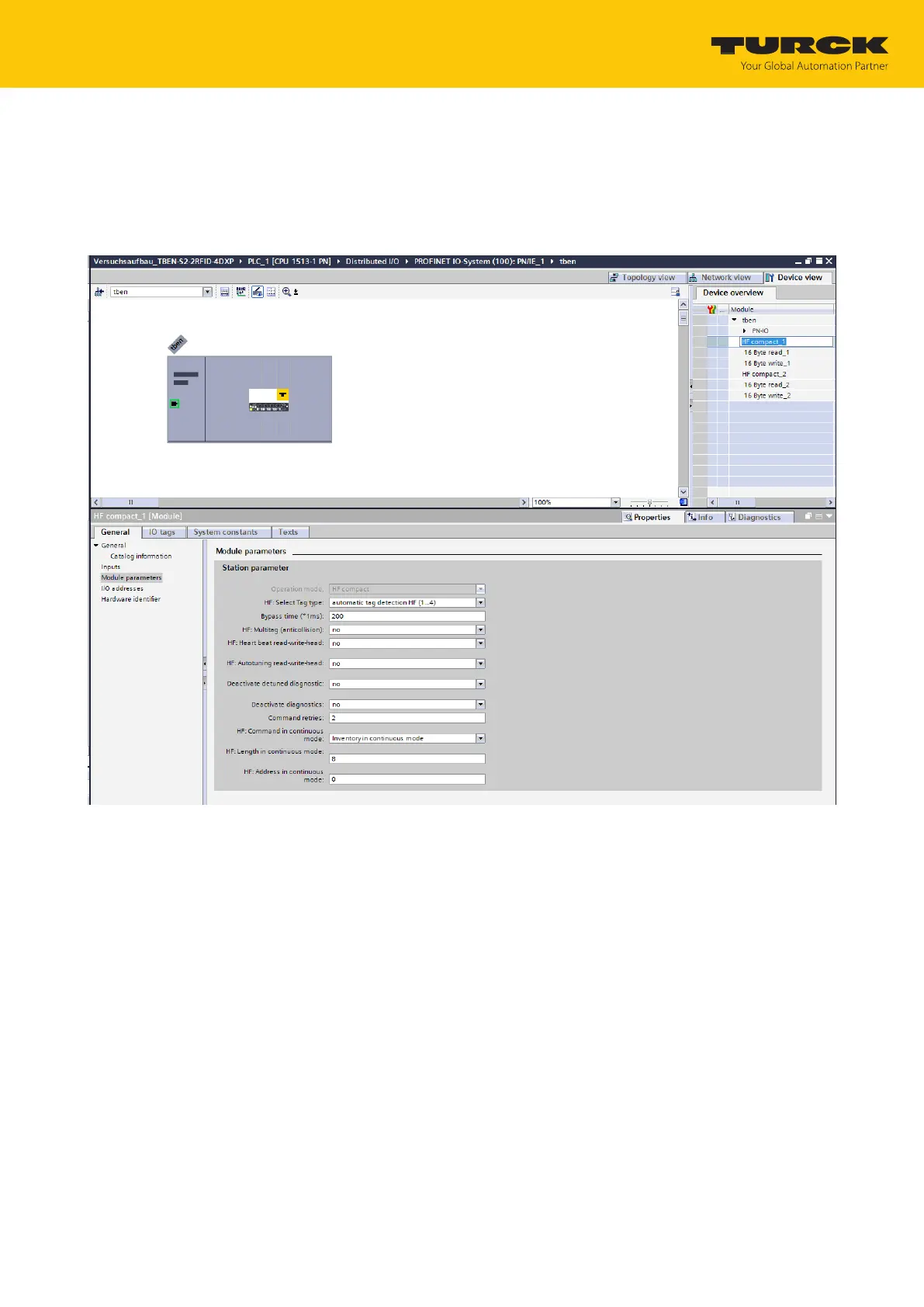

Fig.72: Setting module parameters

7.4.7 PROFINET mapping

The PROFINET mapping is the same as the data mapping described in the chapter “Setting”.
