Commissioning

Connecting the device to an EtherNet/IP scanner using RSLogix

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 58

 Select Turck under Module type vendor filters.

 Select the TBEN-RFID module.

 Confirm the selection with Create.

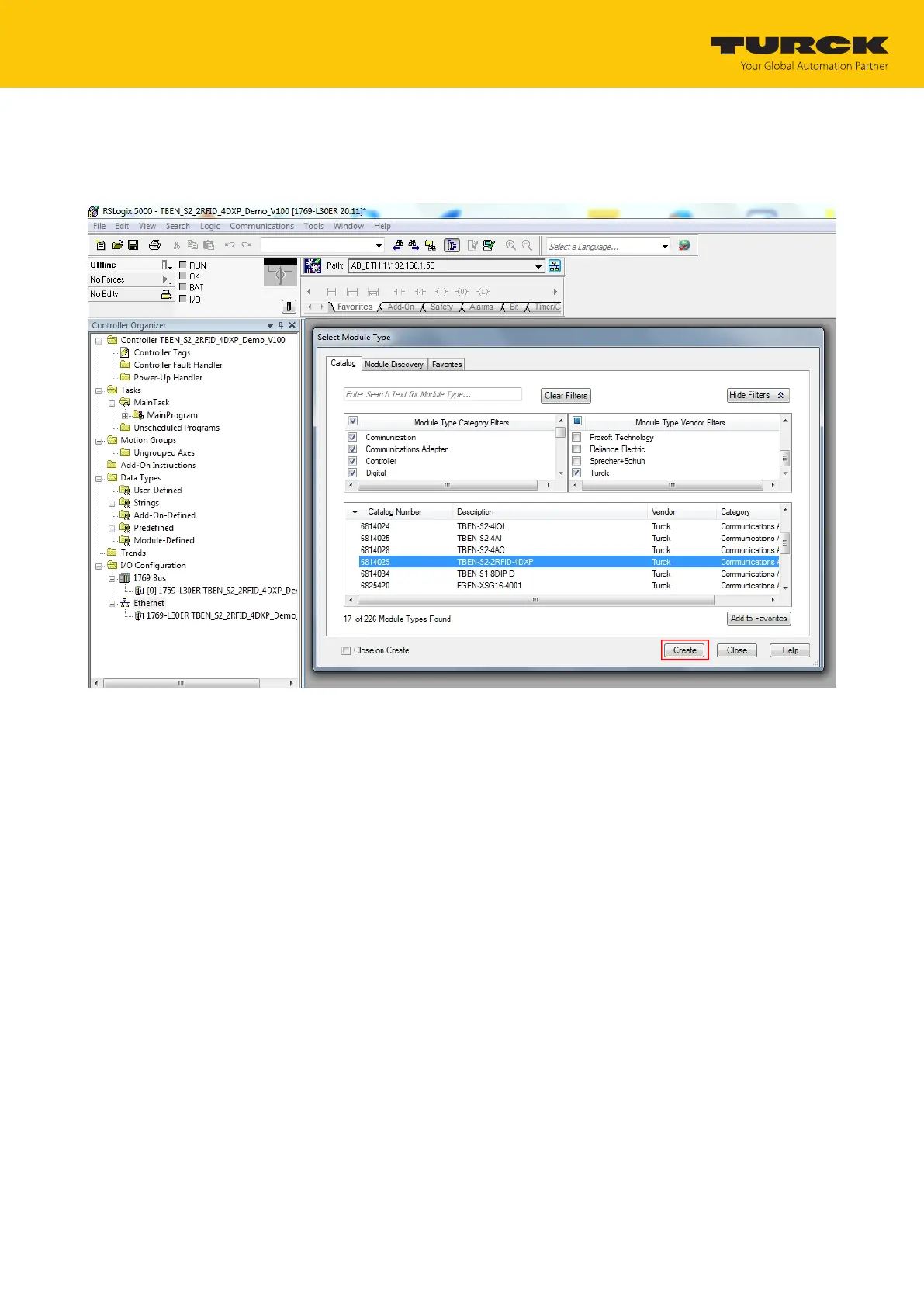

Fig.52: Selecting an EDS file for TBEN-S2-2RFID-4DXP
