Commissioning

Connecting the device to an EtherNet/IP scanner using RSLogix

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 59

 Assign a module name.

 Enter the IP address of the device.

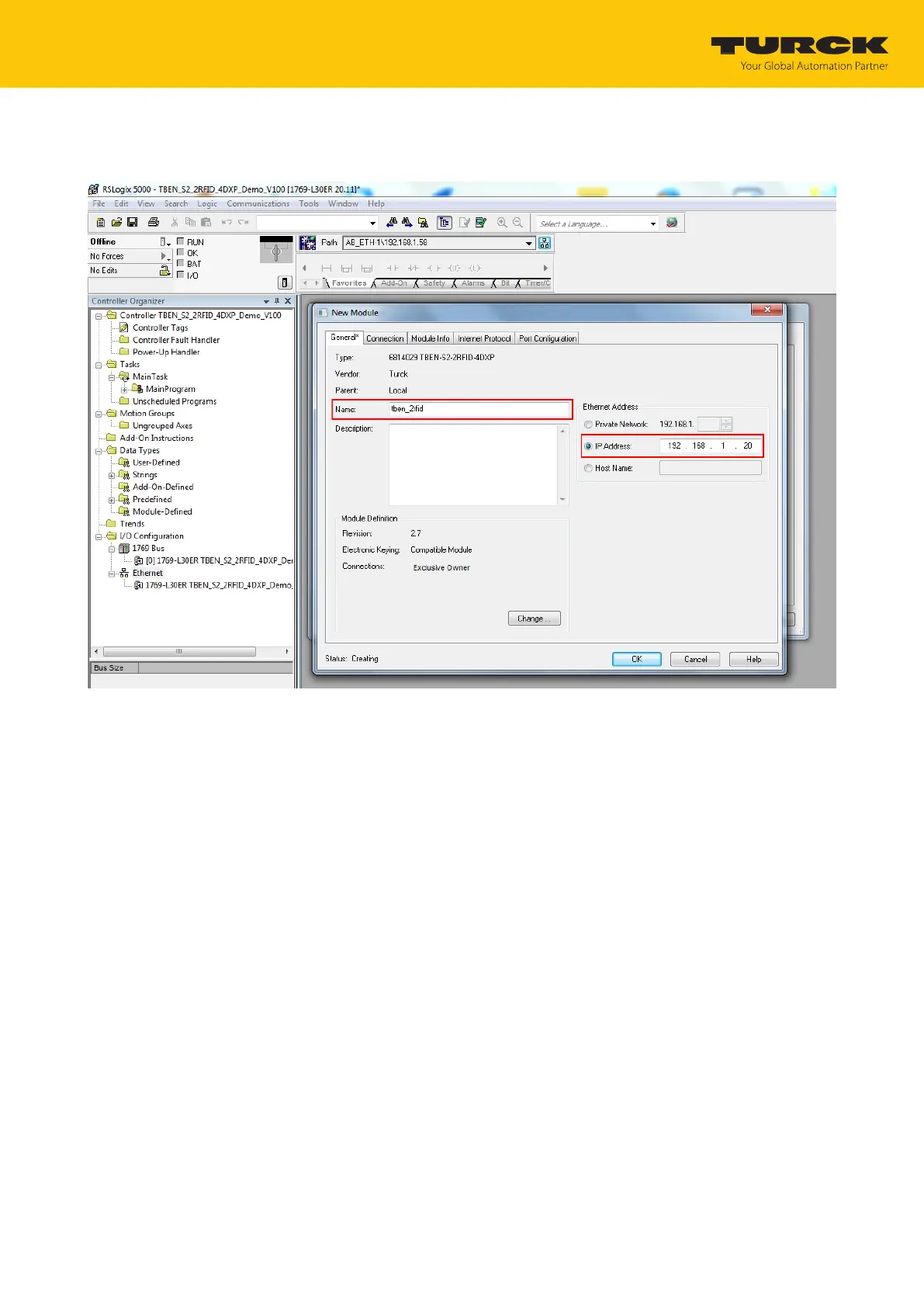

Fig.53: Setting the module name and IP address
