Commissioning
Connecting the device to a Modbus master with CODESYS
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com
07.00 | 2022/09 | 46
Defining channel 1 (output data)
Double-click the Modbus TCP slave.
In the Modbus slave channel tab, select Add channel.
Enter the following values:
n Name of channel
n Access type: Write multiple registers
n Offset: 0x0800
n Length: 64 register (128 bytes)
Confirm with OK.

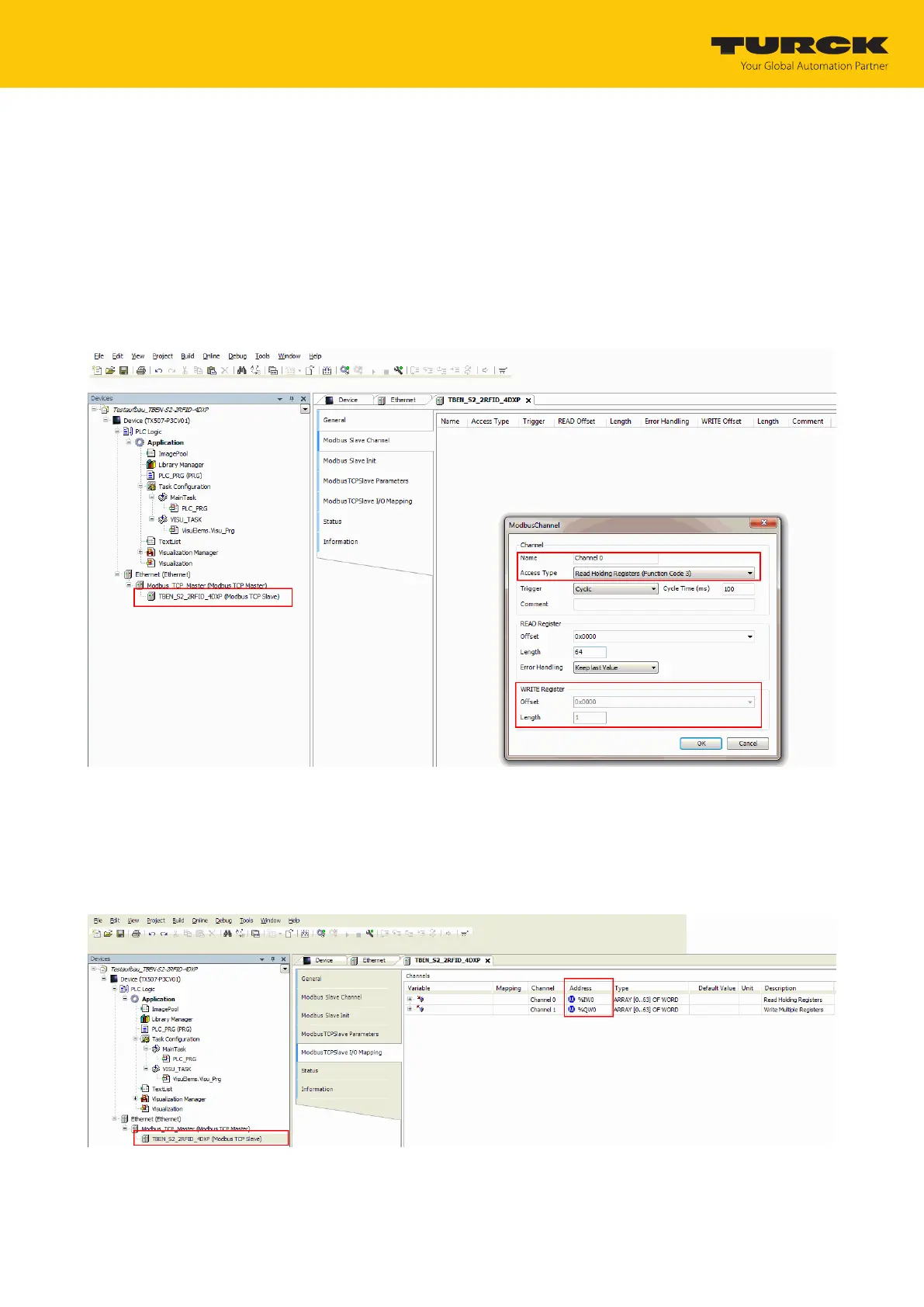

Fig.44: Setting WRITE registers
Changing channel addresses
Double-click the Modbus TCP slave.
Click the Modbus TCP slave I/O image tab.
Enter the address in the corresponding table column.
Fig.45: Changing channel addresses
