Setting

Setting RFID interfaces with the RFID PC Demo software for Modbus TCP

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 203

Opening the log

 In the Log file tab, click the Open button.

 Select the file.

 Click Open.

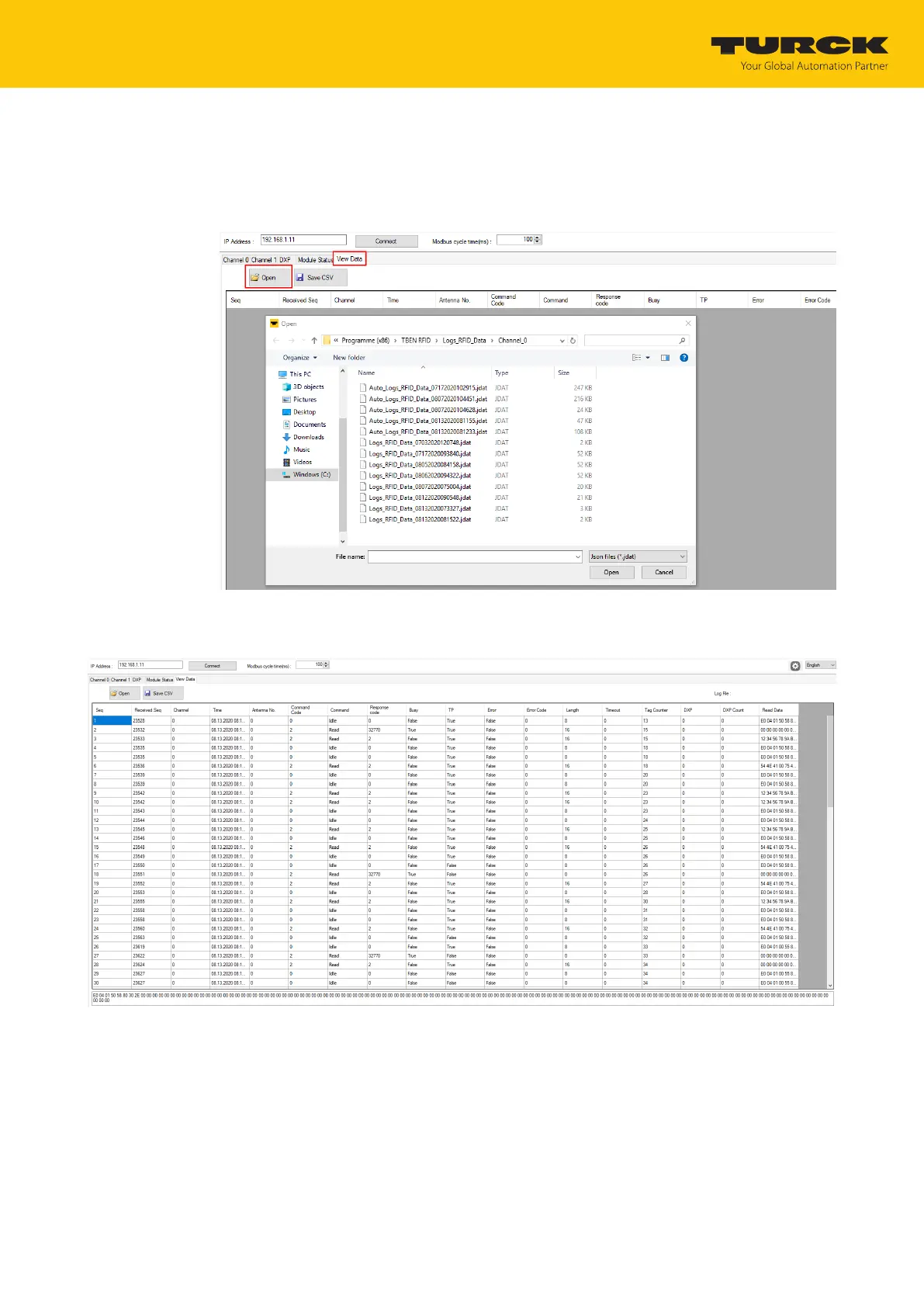

Fig.118: Opening the log file

a The log data is displayed.

Fig.119: Example: Log data
