Operation

Use fragmentation

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 215

 Repeat the operation until no more data is present on the TBEN module.

a If no more data is present on the TBEN module, Read fragment No. will show the value 0.

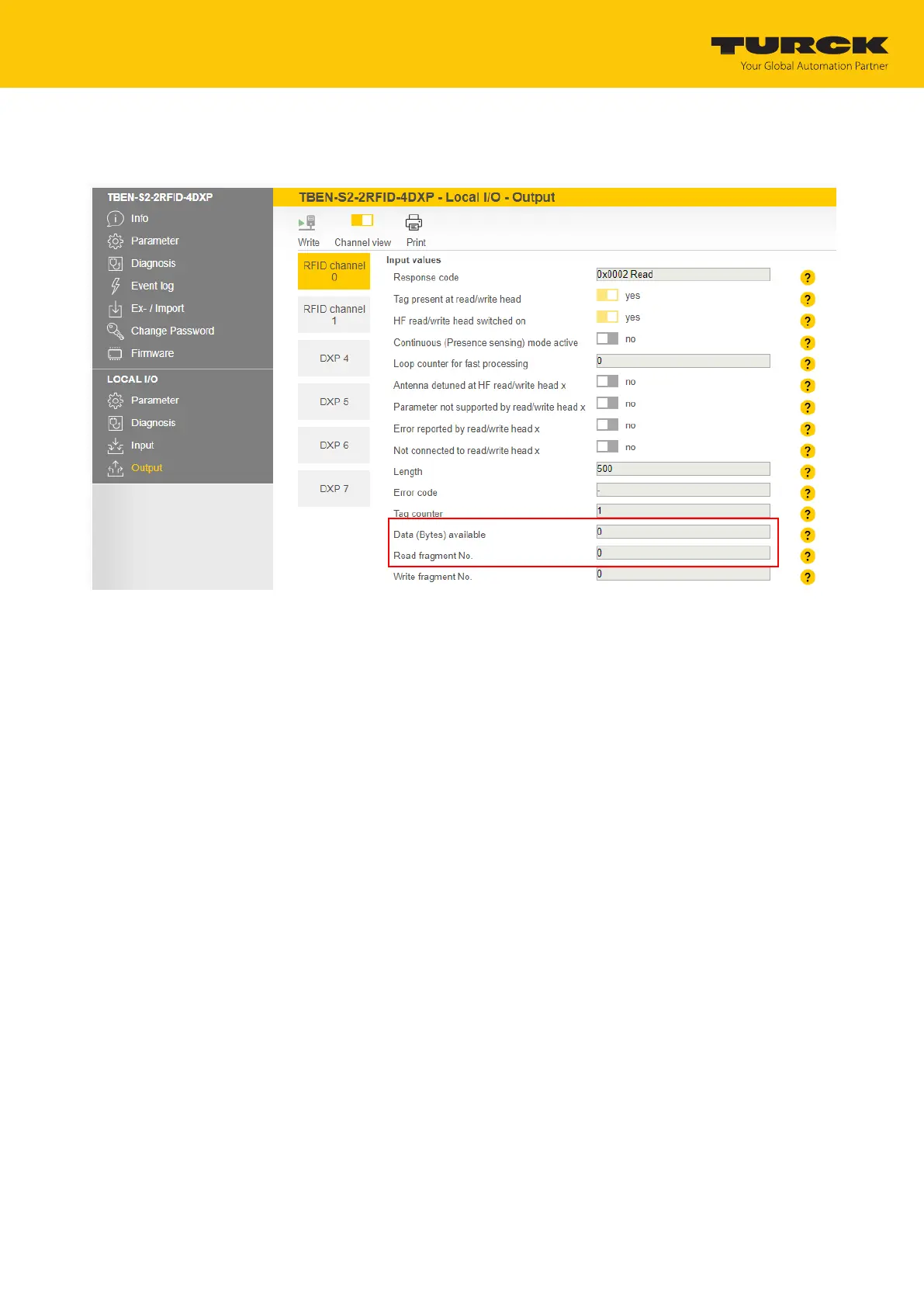

Fig.130: Fragmentation — no more data present
