Operation
Use fragmentation
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com
07.00 | 2022/09 | 217
Enter the first 128 bytes of write data under Output buffer.
Click Local I/O Ò Output in the navigation bar on the left of the screen.
Output values Ò Length: Enter the total number of bytes to be written (here: 500).
Observe the size of the tag.
Under Write fragment No., enter the sequential number of the fragment with the write
data (here: 1 to enable the write data fragmentation).
Select the write command via the Command code drop-down menu: 0x0004 Write.
a The write command is executed as soon as a tag is present in the detection range of the
read/write head. If a tag is already present in the detection range of the read/write head,
the data is written directly and not stored on the TBEN module.

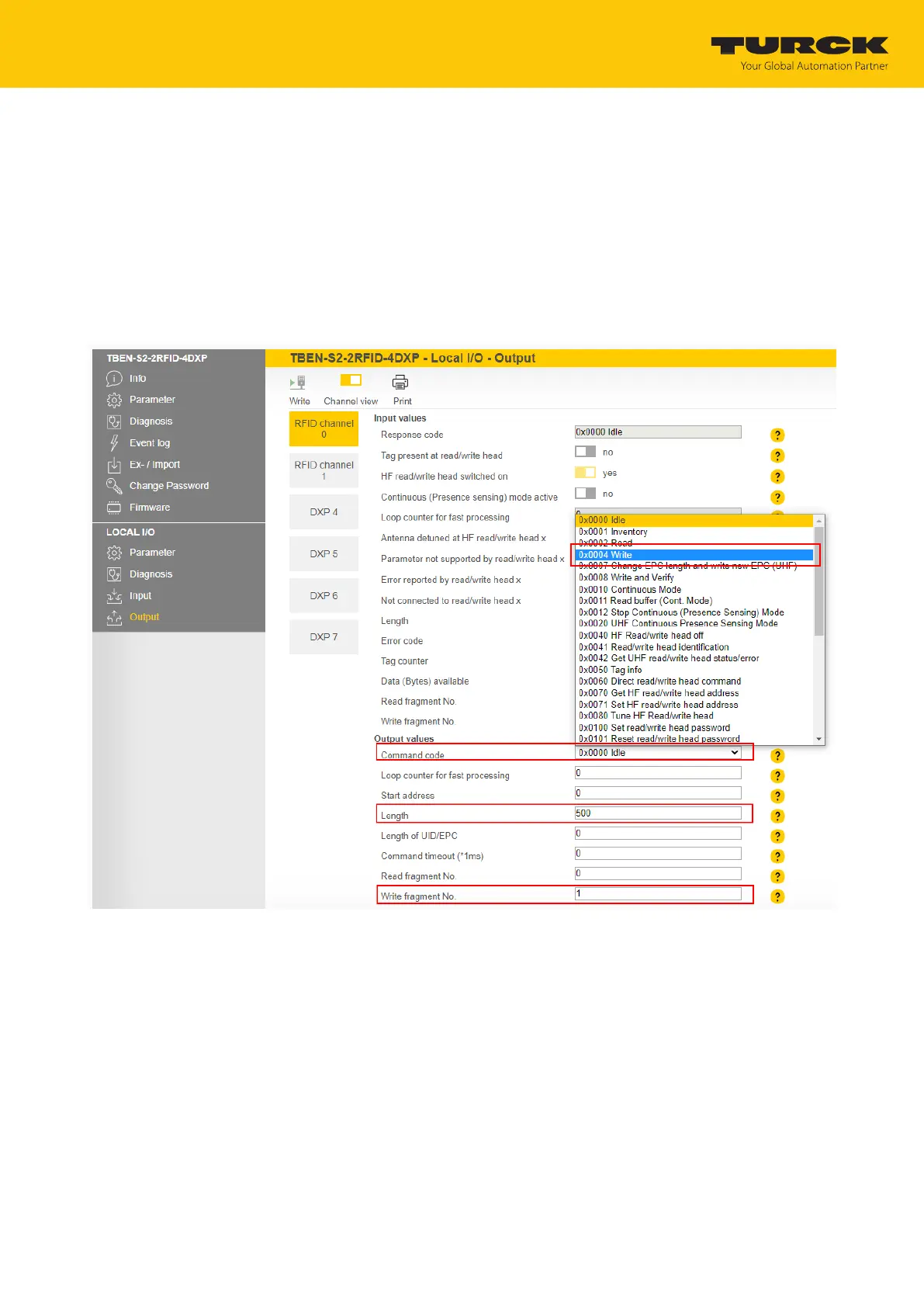

Fig.132: Fragmentation — executing a write command
