Maintenance

Performing a firmware update

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 269

 Search for connected Ethernet devices: Click the Search icon.

 Selecting the required device.

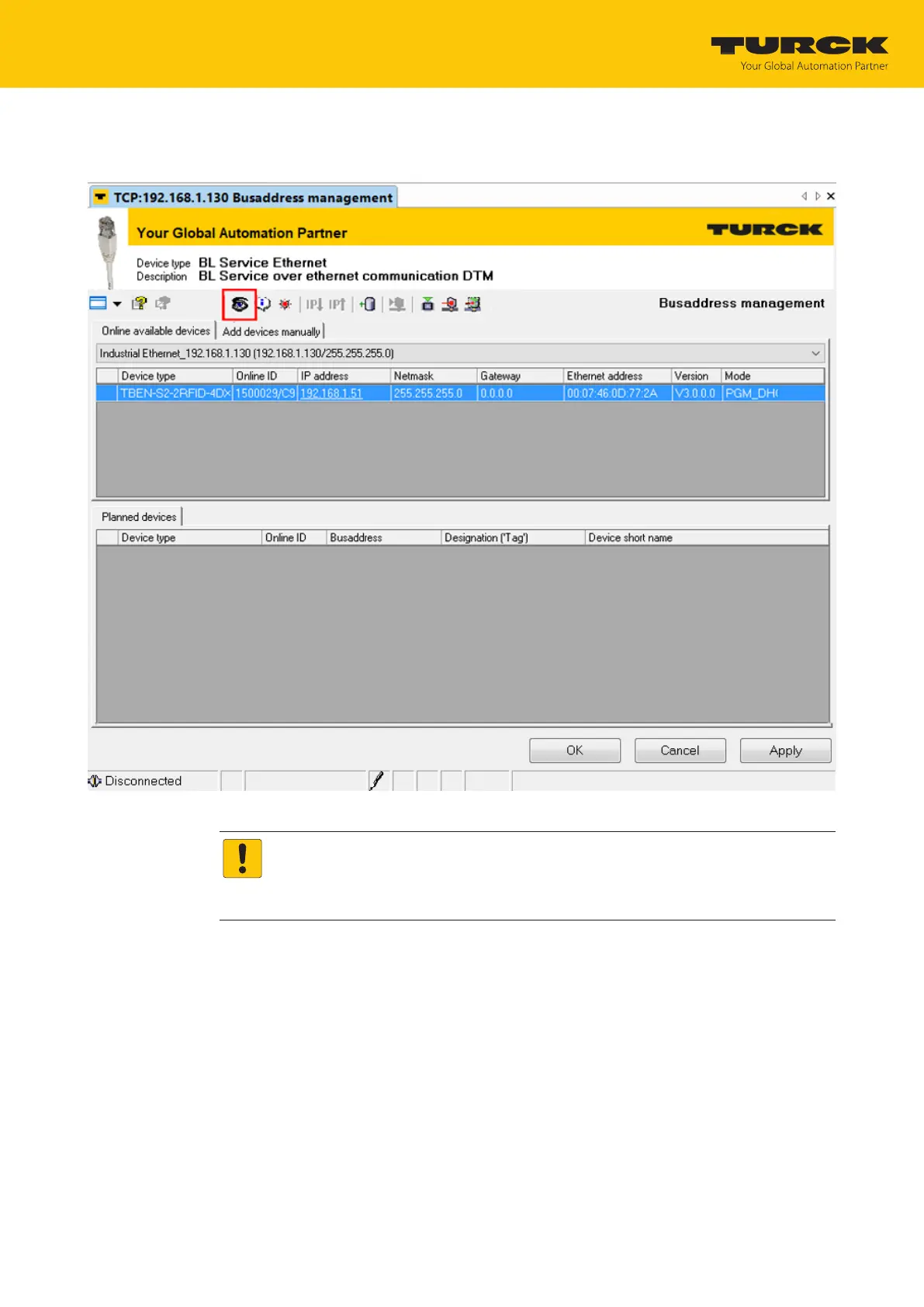

Fig.170: Selecting the device

NOTICE

Faulty firmware update

Restricted device functions due to missing web server

 Upload bootloader to version ≥10.0.1.0.
