Maintenance

Performing a firmware update

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 272

Updating the firmware

 Click the Firmware Download button.

 Select firmware and click Open.

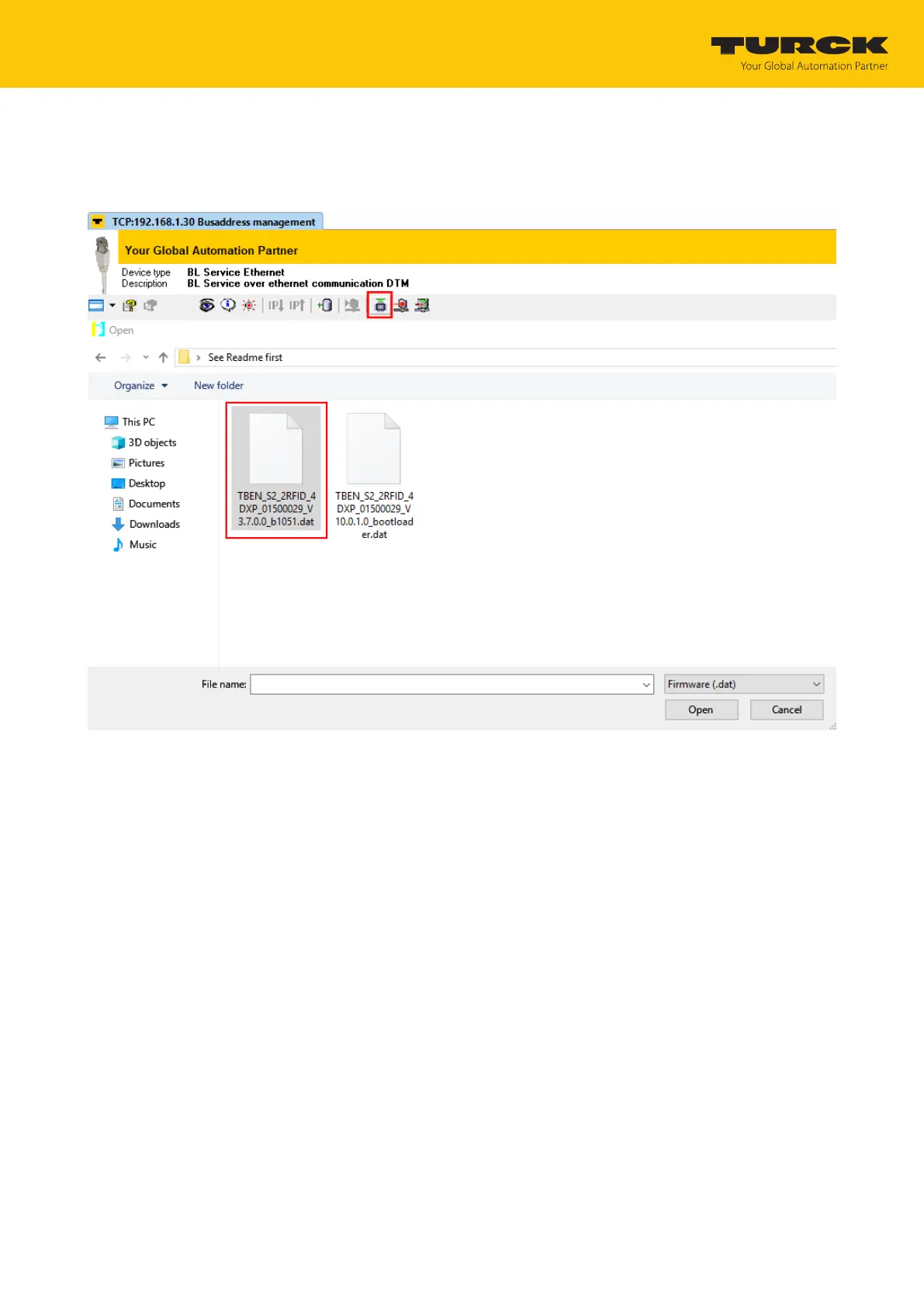

Fig.173: Starting the firmware update
