Commissioning

Connecting the device to an EtherNet/IP scanner using RSLogix

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 54

The wizard for the installation of EDS file opens.

 Click Next to select the EDS file.

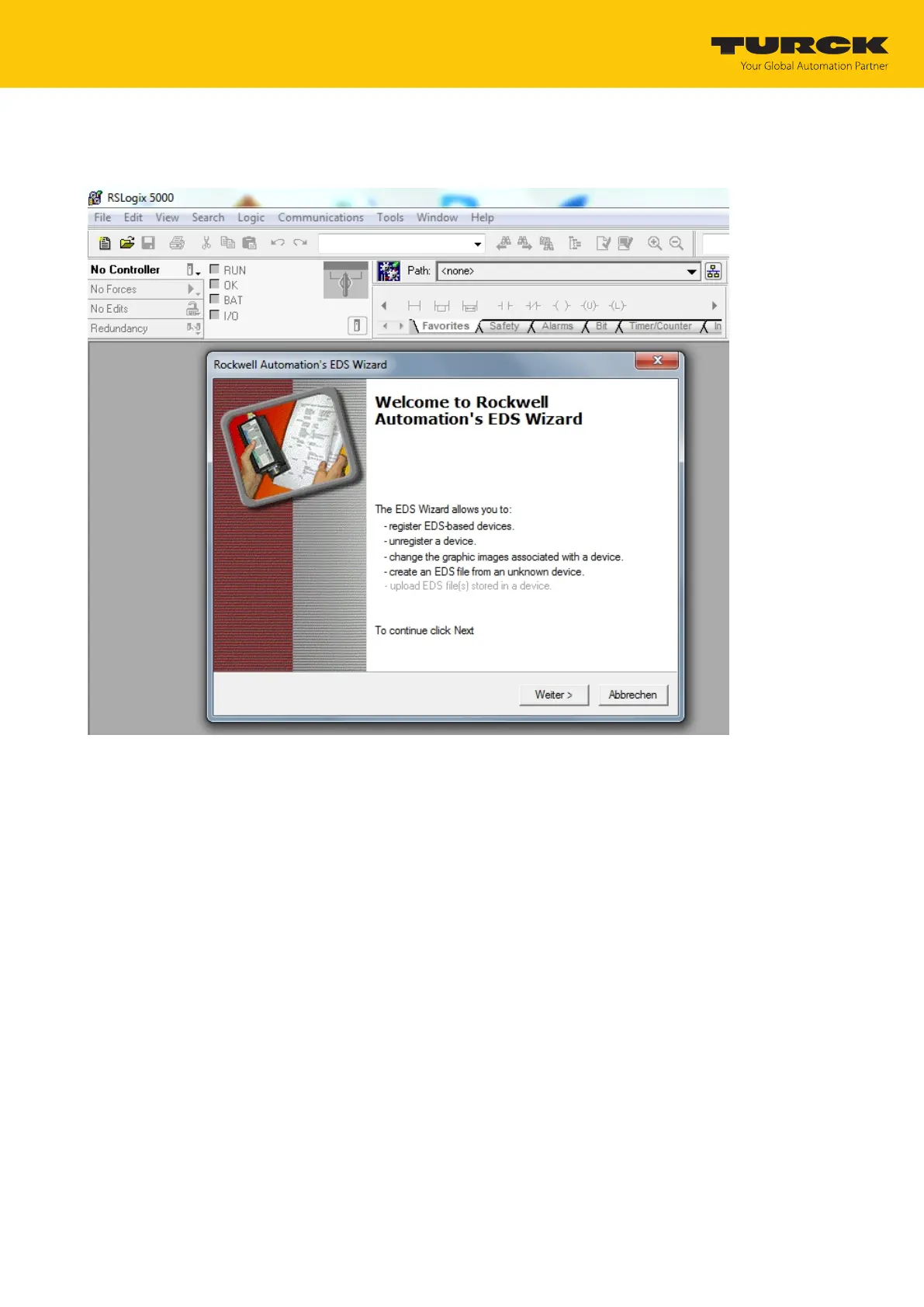

Fig.48: Starting the EDS Wizard
