Commissioning

Connecting the device to an EtherNet/IP scanner using RSLogix

Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com

07.00 | 2022/09 | 64

 In the following window click (Connect to go online) Download.

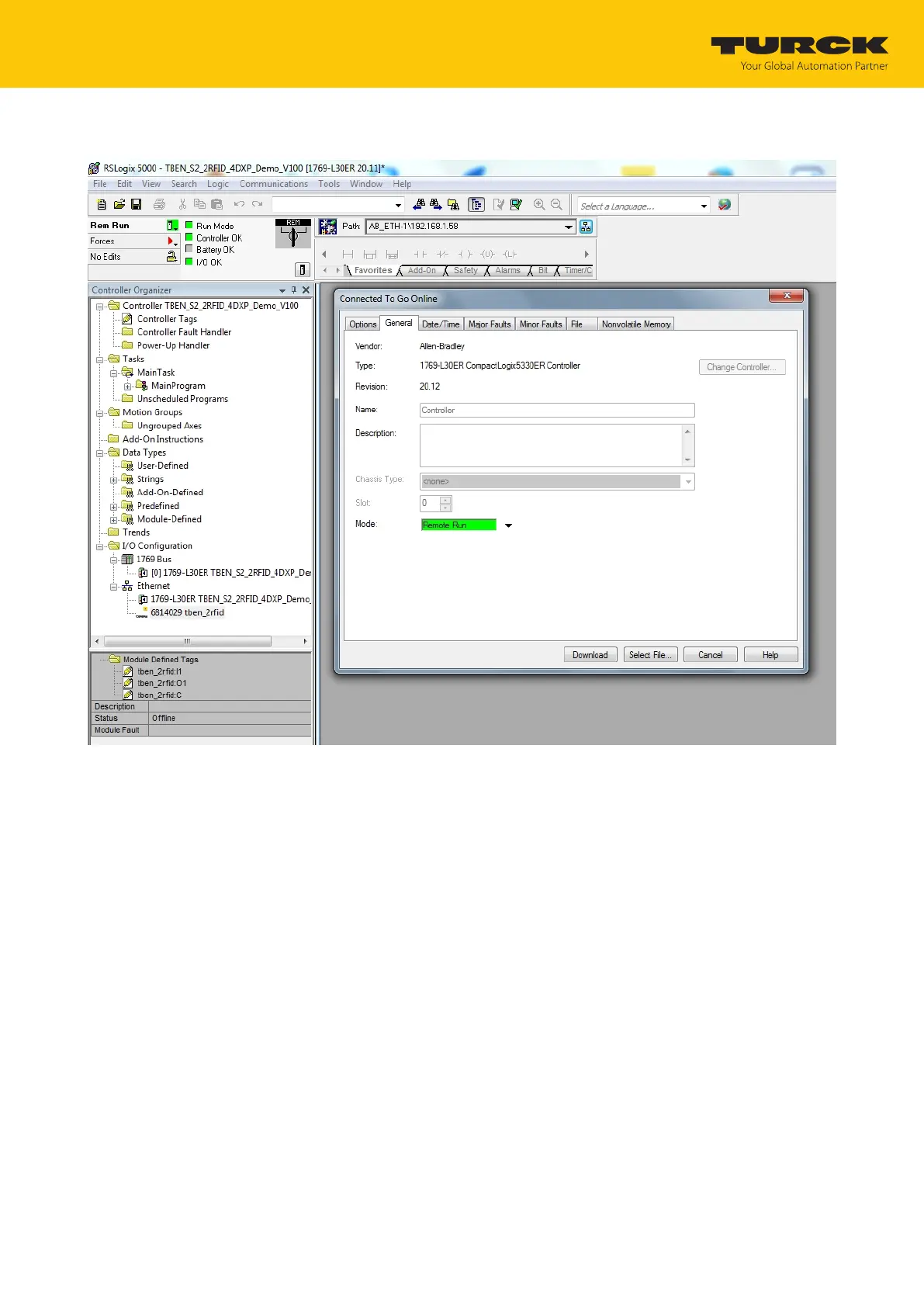

Fig.59: Click Download

 Confirm all the subsequent messages.
