FITTING INSTRUCTION 26.07.1999 6000---8750
39.20
2(8)
AGRODATA--- INSTRUMENT PANEL
06.08.1997

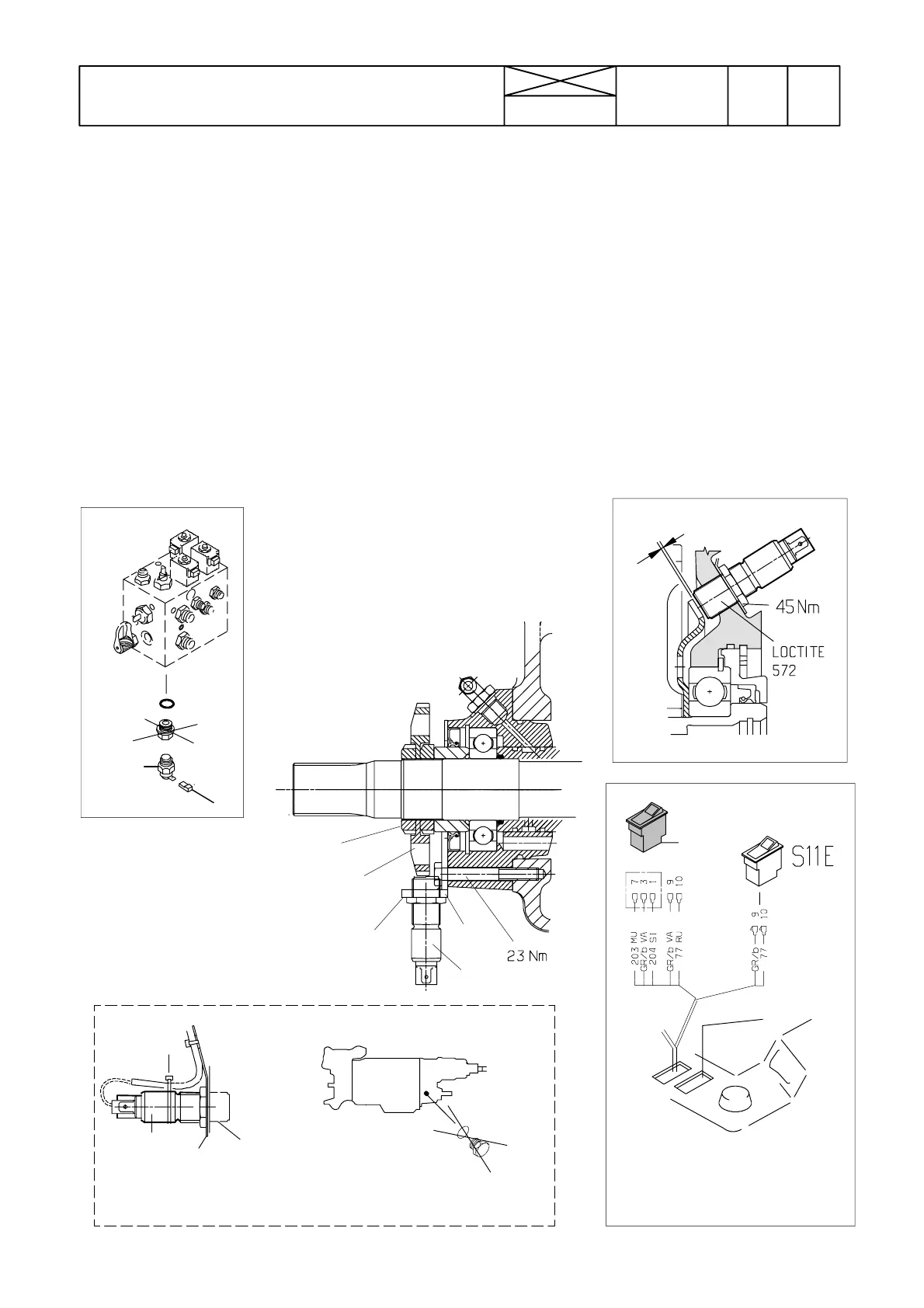

--- Draw the connector ”X34” of the sensor wiring
loom through the opening at the bottom of the
side panel. Connect the connector to the wiring
loom 2. Connect also the connector ”X1E” to the
wiring harness 2.
(The connector ”X39” of the wiring loom 7
remains unconnected).
--- Take the switch S11E (forced lowering switch)
apart from the panel and connect the auxiliary
wires of the wiring loom 2 to the switch S37, and
fit the switch again (see picture).
(The connectors of the wiring loom 2 ”H25”,
”H26”, ”GR5” and ”X36” remain unconnected).
--- C a rr y o u t a c ali b r a t in g ( s e e p a g es 6 --- 7 / 7 ) a n d a
test drive and ensure that Agrodata---unit func-
tions.
