Steering valve

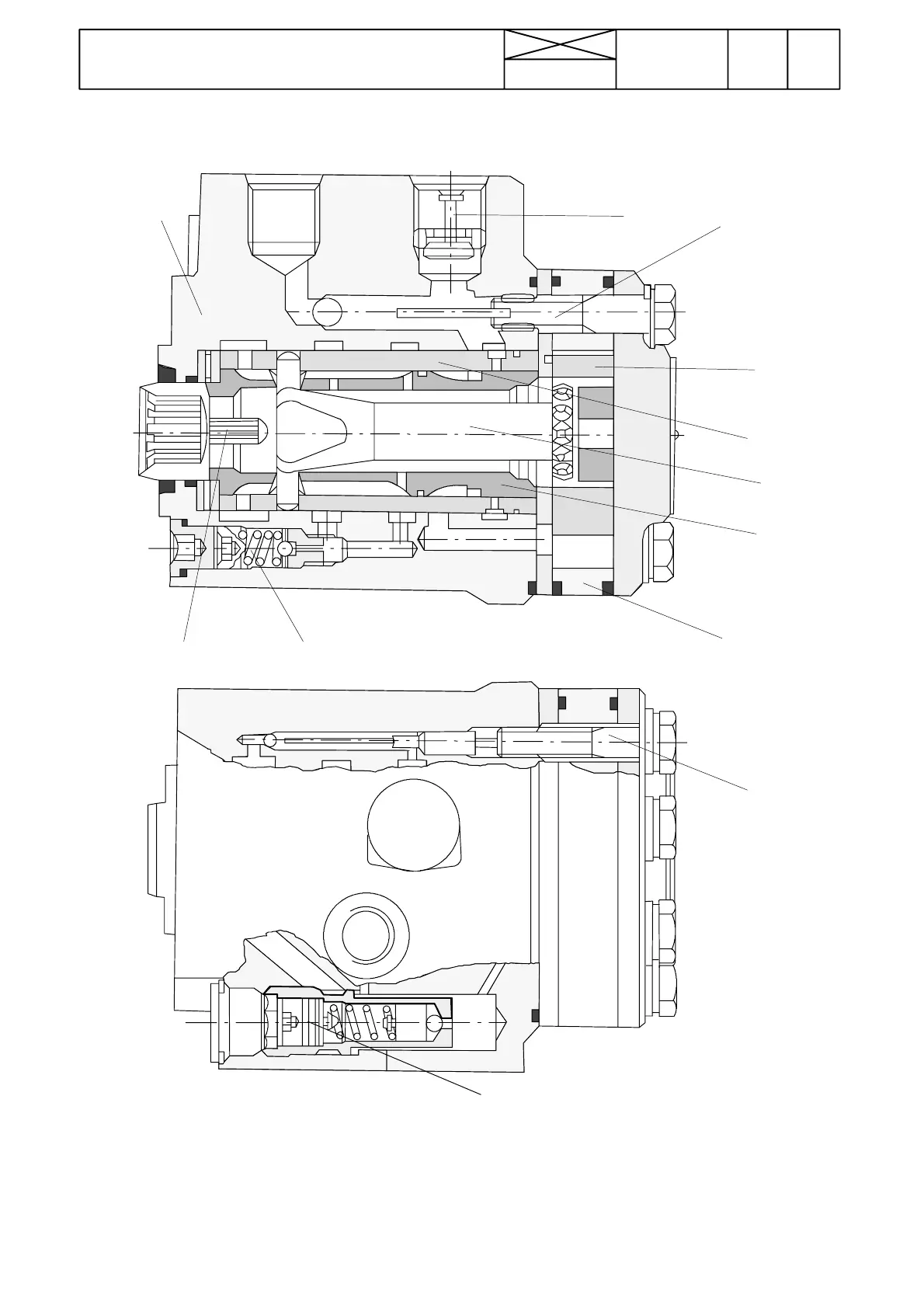

Figure 4. Steering valve
1. Shock valve (2 pcs, 19,5 MPa)
2. Non---return valve
3. Non ---return valve for emergency steering
4. Rotor ring
5. Rotor
6. Valve housing
7. Inner valve spool
8. Outer valve spool
9. Rotor shaft
10. Centring springs
11. Pressure--- limiting valve (14 MPa)
12. Anti --- cavitation valves (2 pcs)
