61. Steering system
1. 1. 1995
6000--8750 610 11
15. 5. 1993
Steering cylinder
The steering cylinder is fitted at the back of the front axle
member where it is protected from damage.
The piston is fitted at the centre of the piston rod which runs
through both ends of the cylinder. There are seals on the pis-
ton against the cylinder barrel and also in both end pieces
against the piston rod and cylinder liner.
Thetie---rodsareconnecteddirectlytothepistonrodends.
Steering movements are transmitted symmetrically via the
tie---rods to the steering arms; there is ample steering power
even close to the full---lock positions.
1
2
2
5
4
6
3
2

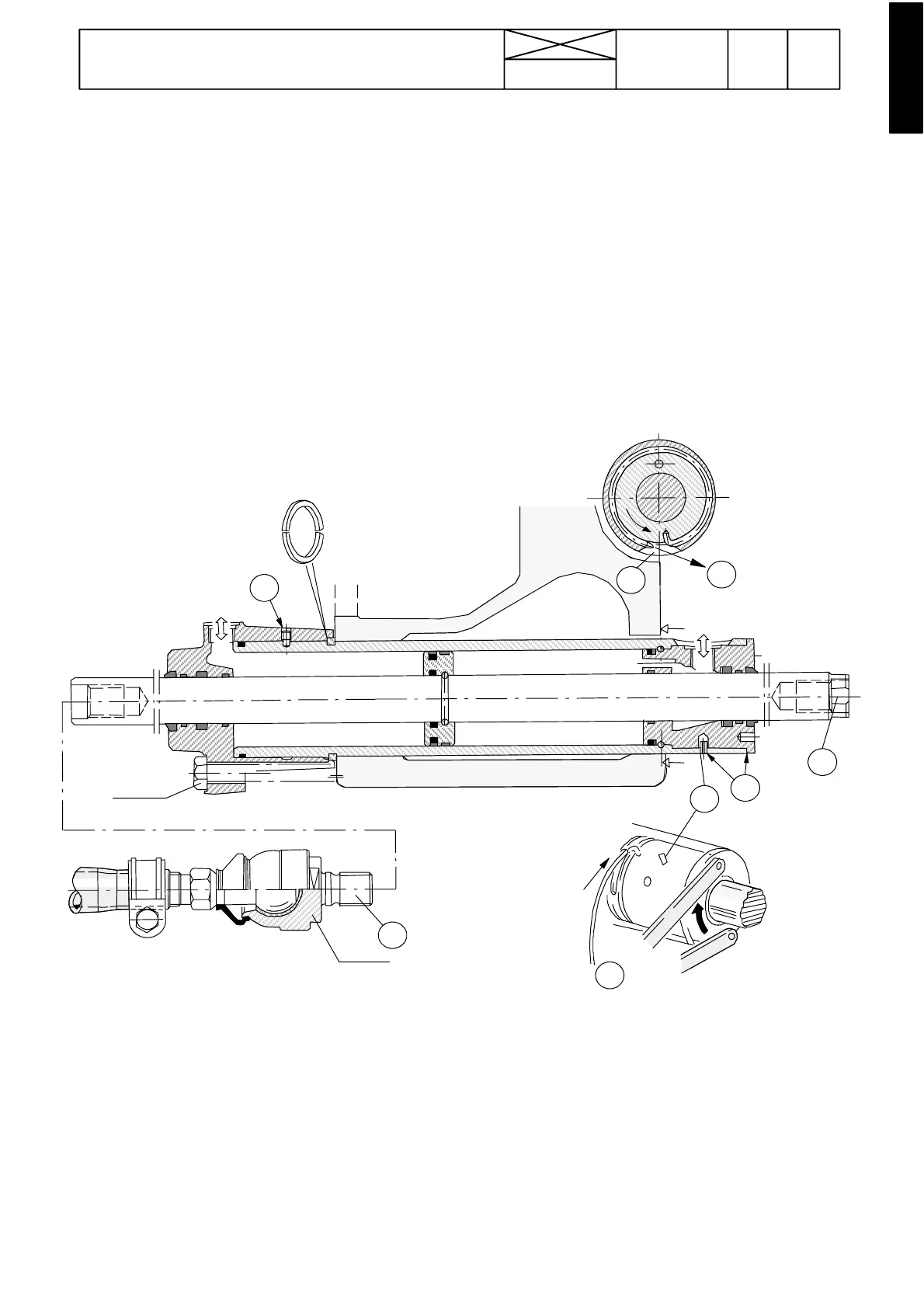

Figure 9. Sige steering cylinder up to front axle no. 1672/94
(On Hi ---Lock axles up to front axle number 0305/94. On ind.
front axles up to axle number 085/94).
1. Removal of locking wire
2. Fill with silicon mass when fitting
3. Locking fluid Loctite 586 on the threads
4. Loctite 586
5. Pin to prevent rotation of end piece
6. Fitting of locking wire
