940
Model Code Page
61. Steering system
6000--8750 610 12
1. 1. 1995
15. 5. 1993
NOTE! Steering cylinder on Carraro 20.29 front ax-
le, see code 675.

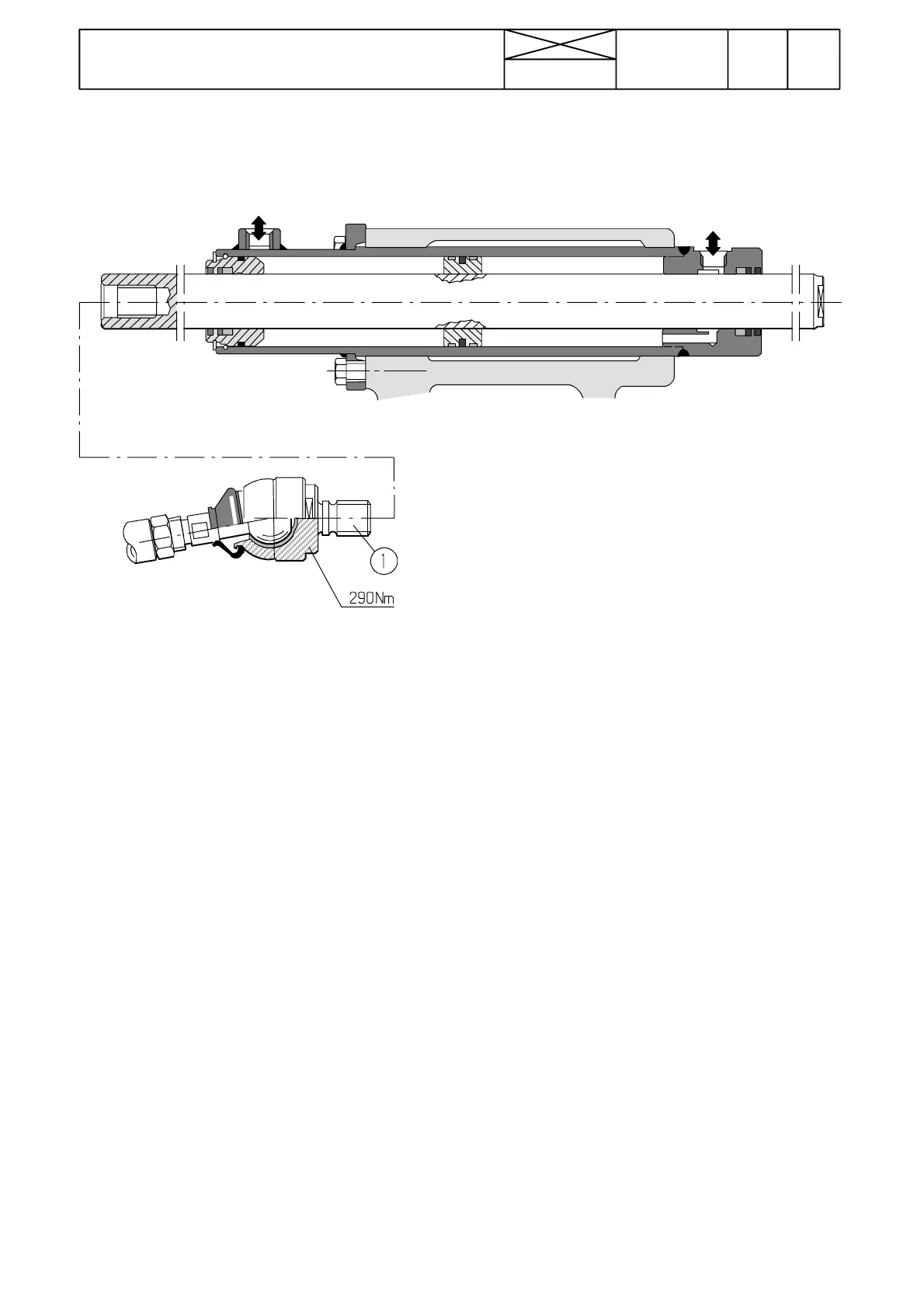

Picture 10. Steering cylinder with effect from front axle number 1673/94 (on H i ---
Lock axles from axle number 0306/94. On ind. front axles from axle no 086/94).
1. Locking fluid Loctite 586 to threads.
The parts o f the latest steering cylinder are not separately exchangeable with the
earlier cylinder parts. The co mplete steering cylinder is exchangeable with the ear-
lier c ylinder. The inner diameter of the cylinder is 65 mm. The piston rod diameter is
32 mm.
