Free blow device In areas in which there is expected to be an increased occurrence of dust
particles or ice formation, blowing through of the aspiration pipe system

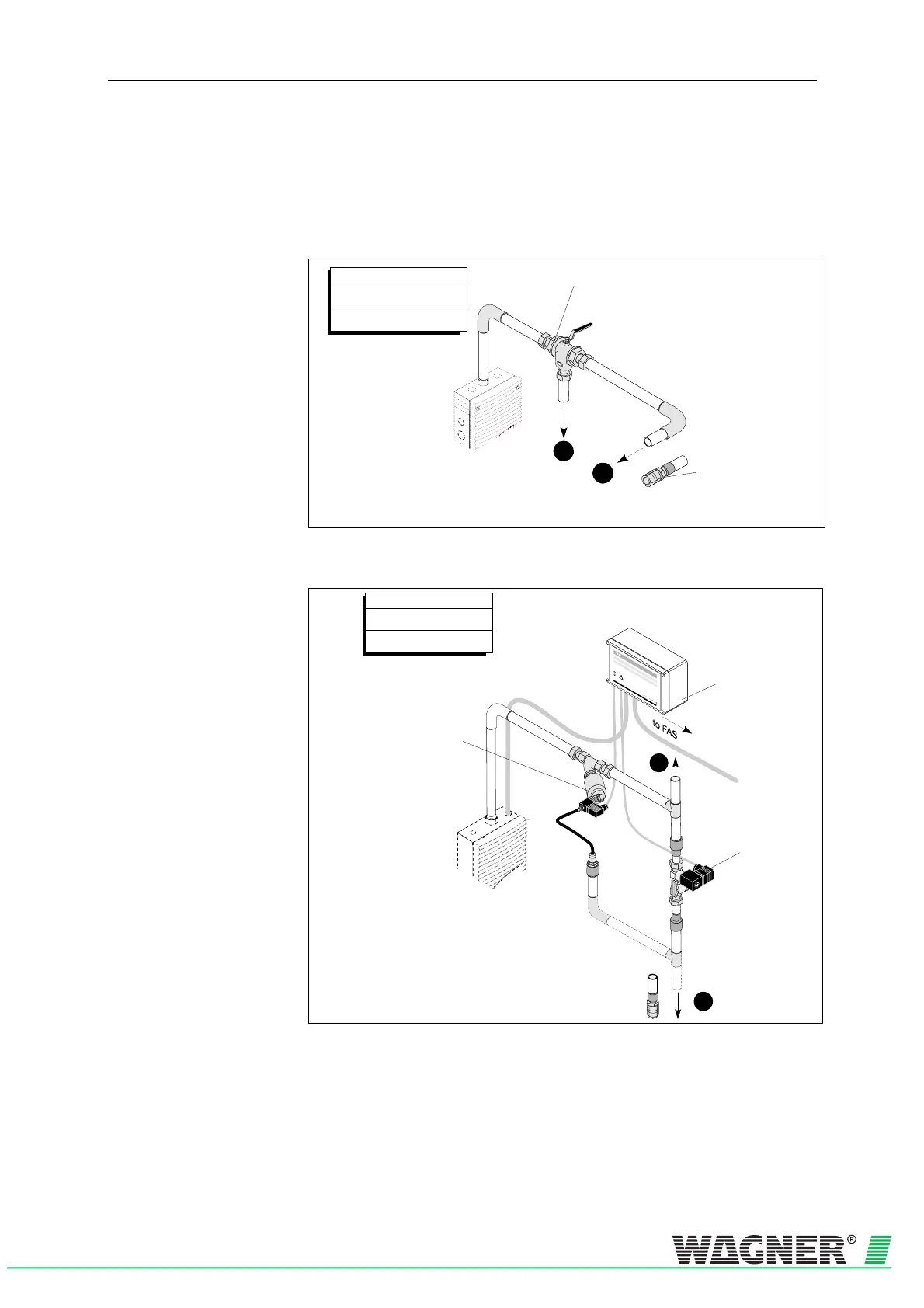

and aspiration apertures may be necessary. Fig. 2.22 and Fig. 2.23 each
show the components of a manual and an automatic blowing-out system.
Depending on the frequency of blockages, the blow-throng process can
be undertaken manually or automatically.
Connections
A
B
Compressed air supply
Pipe system
3-Way bushing
ball valve
Quick close coupling
bushing with fittings
B
A
Fig. 2.22: Components of the manual blowing-out system
Connections
A
B
Compressed air supply
Pipe system
Valve control
2/2-way valve,
Stop valve complete
B
A
2/2-way valve,
Compressed air
valve complete
Quick close coupling
bushing with fittings
Fig. 2.23: Components of the automatic blowing-out system

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
