WAGNER TITANUS User Manual

TITANUS MICRO·SENS
®
Technical Description
MS_A_02-a-en-e Data: 01/09 2 – 13
2.2.5 Parallel Displays
Parallel display in
the wall housing

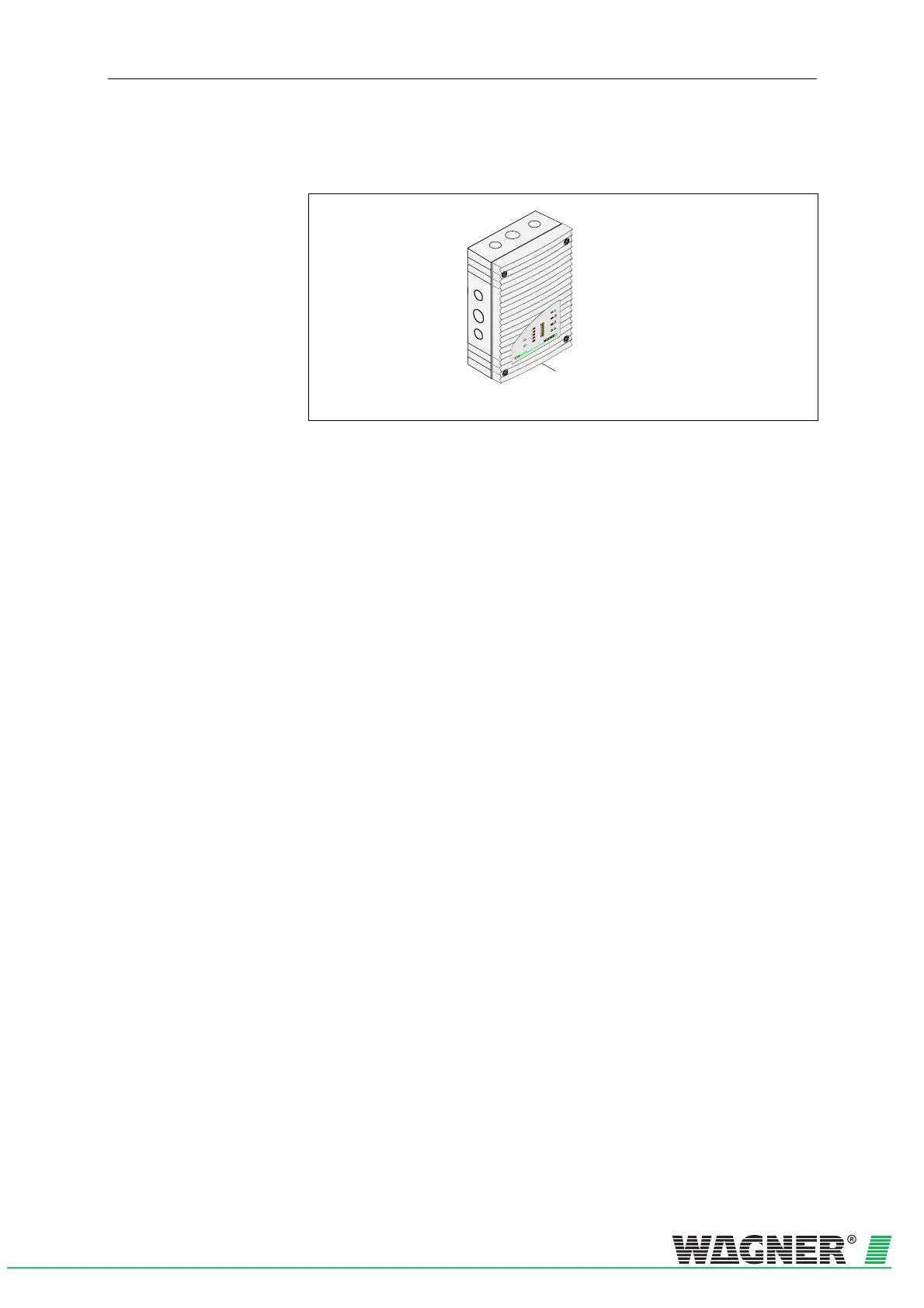

Fig. 2.15: Parallel display for wall mounting
The TITANUS MICRO·SENS
®
offers the possibility of connecting one or
more parallel displays. The displays on the parallel display are identical
to those on the detection unit. The connection is made in the TITANUS
MICRO·SENS
®
device base.
A parallel display can be connected up to a distance of 1000 m. If a
second parallel display [sic] is connected behind the first one, this can in
turn again be 1000 m from the first one. This is possible as each parallel
display is also a repeater.
The power supply for small distances is direct through TITANUS
MICRO·SENS
®
, and for longer distances via an external supply (see
Chapter 4.4 "Power Supply Calculation").
.

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
