2.3 Pipe system
2.3.1 Overview
TITANUS
®
End cap
air sampling pipe
A
A
A
plastic clip for
air flow reducer
noise suppressor
pipe cap (o p tio n al)
Connections
A pipe system
special filter
45°- elbow
marking tape for AF
pipe with PG16
internal thread
air flow reducer
aspiration reducin g
film sheet
steam trap
air filter double screw
joint
ceiling feed
through
air
sampling
hose-
reducer coupling
90° elbow
90° arc
sleeve
T- p i e c e
test adapter

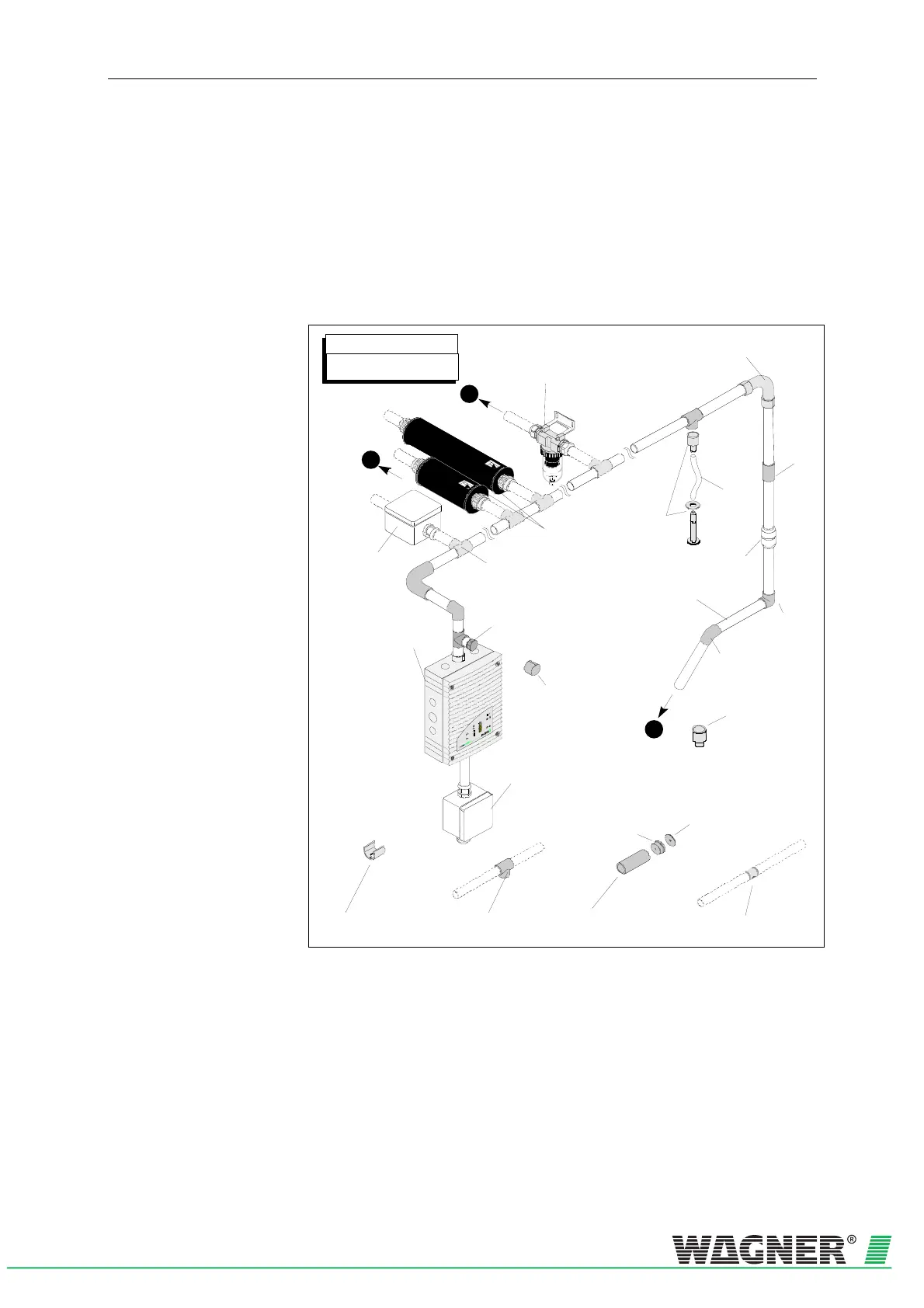

Fig. 2.21: Components of the pipe system for smoke detection systems
The accessory components shown in Fig. 2.21 are to be chosen for the
particular individual case and can be used in combination.
.

WAGNER TITANUS Specifications

General

Power Supply	24 V DC
Operating Temperature	-20°C to +60°C
Alarm Output	Relay contacts
Certification	VdS, EN 54
Humidity Range	10% to 95% (non-condensing)
